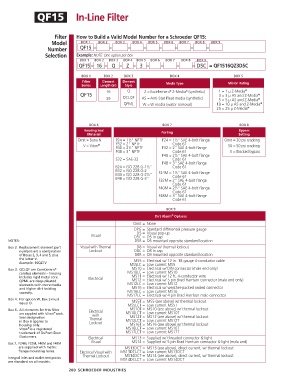

QF15 In-Line Filter

Filter How to Build a Valid Model Number for a Schroeder QF15:
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9
Number QF15 – – – – – – – –
Selection Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9
QF15 – 16 – Q – Z – 3 – – – – D5C = QF1516QZ3D5C

BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
Filter Element Element
Series Length (in) Style Media Type Micron Rating
®
16 Q Z = Excellement Z-Media (synthetic) 1 = 1 µ Z-Media
®
®
QF15 3 = 3 µ AS and Z-Media
®
39 QCLQF AS = Anti-Stat Pleat media (synthetic) 5 = 5 µ AS and Z-Media
®
QPML W = W media (water removal) 10 = 10 µ AS and Z-Media
®
25 = 25 µ Z-Media ®
BOX 6 BOX 7 BOX 8
Housing Seal Porting Bypass
Material Setting
Omit = Buna N P24 = 1 ⁄2" NPTF F24 = 1 ⁄2" SAE 4-bolt flange Omit = 30 psi cracking
1
1
Code 61
V = Viton ® P32 = 2" NPTF F32 = 2" SAE 4-bolt flange 50 = 50 psi cracking
P40 = 2 ⁄2" NPTF
1
P48 = 3" NPTF Code 61 X = Blocked bypass
F40 = 2 ⁄2" SAE 4-bolt flange
1
S32 = SAE-32 Code 61
F48 = 3" SAE 4-bolt flange
B24 = ISO 228 G-1 ⁄2" Code 61
1
B32 = ISO 228 G-2 F24M = 1 ⁄2" SAE 4-bolt flange
1
B40 = ISO 228 G-2 ⁄2" Code 61
1
B48 = ISO 228 G-3" F32M = 2" SAE 4-bolt flange
Code 61
F40M = 2 ⁄2" SAE 4-bolt flange
1
Code 61
F48M = 3" SAE 4-bolt flange
Code 61
BOX 9
®
Dirt Alarm Options
Omit = None
DPG = Standard differential pressure gauge
D5 = Visual pop-up
Visual D5C = D5 in cap
NOTES: D5R = D5 mounted opposite standard location
Box 2. Replacement element part Visual with Thermal D8 = Visual w/ thermal lockout
numbers are a combination Lockout D8C = D8 in cap
of Boxes 2, 3, 4 and 5, plus D8R = D8 mounted opposite standard location
the letter V. MS5 = Electrical w/ 12 in. 18 gauge 4-conductor cable
Example: 16QZ1V MS5LC = Low current MS5
Box 3. QCLQF are CoreCentric MS10 = Electrical w/ DIN connector (male end only)
®
coreless elements – housing MS10LC = Low current MS10
includes rigid metal core. Electrical MS11 = Electrical w/ 12 ft. 4-conductor wire
QPML are deep-pleated MS12 = Electrical w/ 5 pin Brad Harrison connector (male end only)
elements with more media MS12LC = Low current MS12
and higher dirt holding MS16 = Electrical w/ weather-packed sealed connector
capacity. MS16LC = Low current MS16
MS17LC = Electrical w/ 4 pin Brad Harrison male connector
Box 4. For option W, Box 3 must MS5T = MS5 (see above) w/ thermal lockout
equal Q.
MS5LCT = Low current MS5T
Box 6. All elements for this filter Electrical MS10T = MS10 (see above) w/ thermal lockout
®
are supplied with Viton seals. with MS10LCT = Low current MS10T
Seal designation Thermal MS12T = MS12 (see above) w/ thermal lockout
in Box 6 applies to Lockout MS12LCT = Low current MS12T
housing only. MS16T = MS16 (see above) w/ thermal lockout
®
Viton is a registered MS16LCT = Low current MS16T
trade mark of DuPont Dow MS17LCT = Low current MS17T
Elastomers. Electrical MS13 = Supplied w/ threaded connector & light
Box 7. F24M, F32M, F40M and F48M Visual MS14 = Supplied w/ 5 pin Brad Harrison connector & light (male end)
are supplied with metric MS13DCT = MS13 (see above), direct current, w/ thermal lockout
flange mounting holes. Electrical Visual with MS13DCLCT = Low current MS13DCT
MS14DCT = MS14 (see above), direct current, w/ thermal lockout
Integral inlet and outlet test points Thermal Lockout MS14DCLCT = Low current MS14DCT
are standard on all models.
