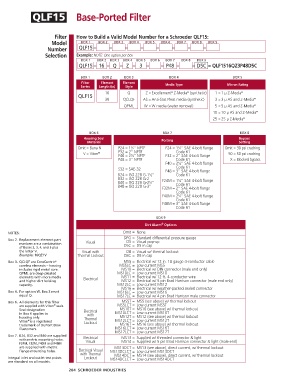

Page 206 - Schroeder - Hydraulic And Lube Filtration

QLF15 Base-Ported Filter

Filter How to Build a Valid Model Number for a Schroeder QLF15:
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9
Number QLF15 – – – – – – – –
Selection Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9
QLF15 – 16 – Q – Z – 3 – – P48 – – D5C = QLF1516QZ3P48D5C

BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
Filter Element Element
Series Length (in) Style Media Type Micron Rating
16 Q Z = Excellement Z-Media (synthetic) 1 = 1 µ Z-Media ®
®
®
QLF15
39 QCLQF AS = Anti-Stat Pleat media (synthetic) 3 = 3 µ AS and Z-Media ®
QPML W = W media (water removal) 5 = 5 µ AS and Z-Media ®
10 = 10 µ AS and Z-Media ®
25 = 25 µ Z-Media ®

BOX 6 BOX 7 BOX 8
Housing Seal Porting Bypass
Material Setting
Omit = Buna N P24 = 1 ⁄2" NPTF F24 = 1 ⁄2" SAE 4-bolt flange Omit = 30 psi cracking
1
1
Code 61
V = Viton ® P32 = 2" NPTF F32 = 2" SAE 4-bolt flange 50 = 50 psi cracking
P40 = 2 ⁄2" NPTF
1
P48 = 3" NPTF Code 61 X = Blocked bypass
1
F40 = 2 ⁄2" SAE 4-bolt flange
Code 61
S32 = SAE-32 F48 = 3" SAE 4-bolt flange
B24 = ISO 228 G-1 ⁄2" Code 61
1
B32 = ISO 228 G-2 F24M = 1 ⁄2" SAE 4-bolt flange
1
B40 = ISO 228 G-2 ⁄2" Code 61
1
B48 = ISO 228 G-3" F32M = 2" SAE 4-bolt flange
Code 61
F40M = 2 ⁄2" SAE 4-bolt flange
1
Code 61
F48M = 3" SAE 4-bolt flange
Code 61
BOX 9
®
Dirt Alarm Options
NOTES: Omit = None
DPG = Standard differential pressure gauge
Box 2. Replacement element part D5 = Visual pop-up
numbers are a combination Visual D5C = D5 in cap
of Boxes 2, 3, 4, and 5 plus
the letter V. Visual with D8 = Visual w/ thermal lockout
Example: 16QZ1V Thermal Lockout D8C = D8 in cap
Box 3. QCLQF are CoreCentric MS5 = Electrical w/ 12 in. 18 gauge 4-conductor cable
®
coreless elements – housing MS5LC = Low current MS5
includes rigid metal core. MS10 = Electrical w/ DIN connector (male end only)
QPML are deep-pleated MS10LC = Low current MS10
elements with more media Electrical MS11 = Electrical w/ 12 ft. 4-conductor wire
and higher dirt holding MS12 = Electrical w/ 5 pin Brad Harrison connector (male end only)
capacity. MS12LC = Low current MS12
MS16 = Electrical w/ weather-packed sealed connector
Box 4. For option W, Box 3 must MS16LC = Low current MS16
equal Q. MS17LC = Electrical w/ 4 pin Brad Harrison male connector
Box 6. All elements for this filter MS5T = MS5 (see above) w/ thermal lockout
are supplied with Viton seals. MS5LCT = Low current MS5T
®
Seal designation Electrical MS10T = MS10 (see above) w/ thermal lockout
in Box 6 applies to with MS10LCT = Low current MS10T
housing only. Thermal MS12T = MS12 (see above) w/ thermal lockout
Viton is a registered Lockout MS12LCT = Low current MS12T
®
trade mark of DuPont Dow MS16T = MS16 (see above) w/ thermal lockout
Elastomers. MS16LCT = Low current MS16T
MS17LCT = Low current MS17T
Box 7. B24, B32 and B40 are supplied Electrical MS13 = Supplied w/ threaded connector & light
with metric mounting holes. Visual MS14 = Supplied w/ 5 pin Brad Harrison connector & light (male end)
F24M, F32M, F40M and F48M
are supplied with metric MS13DCT = MS13 (see above), direct current, w/ thermal lockout
flange mounting holes. Electrical Visual MS13DCLCT = Low current MS13DCT
with Thermal MS14DCT = MS14 (see above), direct current, w/ thermal lockout
Integral inlet and outlet test points Lockout MS14DCLCT = Low current MS14DCT
are standard on all models.
204 SCHROEDER INDUSTRIES
