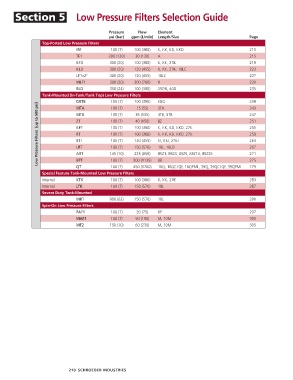

Section 5 Low Pressure Filters Selection Guide

Pressure Flow Element
psi (bar) gpm (L/min) Length/Size Page
Top-Ported Low Pressure Filters
IRF 100 (7) 100 (380) K, KK, KD, KKD 211
TF1 300 (120) 30 (120) A 215
KF3 300 (20) 100 (380) K, KK, 27K 219
KL3 300 (20) 120 (455) K, KK, 27K, 18LC 223
LF1–2" 300 (20) 120 (455) 18LC 227
MLF1 300 (20) 200 (760) K 231
RLD 350 (24) 100 (380) 25DN, 40D 235
Tank-Mounted (In-Tank/Tank Top) Low Pressure Filters
GRTB 100 (7) 100 (380) KBG 239
Low Pressure Filters (up to 500 psi) ZT 145 (10) 100 (380) 8Z 251
100 (7)
MTA
243
15 (55)
3TA
100 (7)
247
35 (135)
3TB, 5TB
MTB
40 (150)
100 (7)
K, KK, KD, KKD, 27K
KFT
255
100 (7)
RT
259
K, KK, KD, KKD, 27K
100 (7)
100 (380)
263
KI, KKI, 27KI
120 (455)
100 (7)
RTI
100 (7)
LRT
150 (570)
18L, 18LD
267
85Z1, 85Z3, 85Z5, 85Z10, 85Z25
ART
271
225 (850)
BFT
100 (7)
QT
100 (7)
279
450 (1700)
16Q, 16QCLQF, 16QPML, 39Q, 39QCLQF, 39QPML
Special Feature Tank-Mounted Low Pressure Filters 300 (1135) BB 275
Internal KTK 100 (7) 100 (380) K, KK, 27K 283
Internal LTK 100 (7) 150 (570) 18L 287
Severe Duty Tank-Mounted
MRT 900 (62) 150 (570) 18L 291
Spin-On Low Pressure Filters
PAF1 100 (7) 20 (75) 6P 297
MAF1 100 (7) 50 (190) M, 10M 301
MF2 150 (10) 60 (230) M, 10M 305

210 SCHROEDER INDUSTRIES
