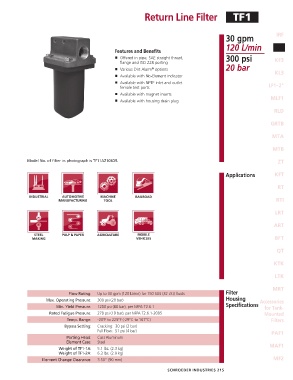

Return Line Filter TF1

30 gpm IRF
120 L/min TF1
Features and Benefits
■ Offered in pipe, SAE straight thread, 300 psi KF3
flange and ISO 228 porting
■ Various Dirt Alarm options 20 bar KL3
®
■ Available with No-Element indicator
■ Available with NPTF inlet and outlet
female test ports LF1–2"
■ Available with magnet inserts
MLF1
■ Available with housing drain plug
RLD

GRTB

MTA

MTB

Model No. of filter in photograph is TF11AZ10SD5. ZT

Applications KFT

RT

RTI

LRT

ART

BFT

QT

KTK

LTK

MRT
Flow Rating: Up to 30 gpm (120 L/min) for 150 SUS (32 cSt) fluids Filter
Max. Operating Pressure: 300 psi (20 bar) Housing Accessories
Min. Yield Pressure: 1200 psi (80 bar), per NFPA T2.6.1 Specifications for Tank-
Rated Fatigue Pressure: 270 psi (19 bar), per NFPA T2.6.1-2005 Mounted
Temp. Range: -20°F to 225°F (-29°C to 107°C) Filters
Bypass Setting: Cracking: 30 psi (2 bar)
Full Flow: 51 psi (4 bar) PAF1
Porting Head: Cast Aluminum
Element Case: Steel
Weight of TF1-1A: 5.1 lbs. (2.3 kg) MAF1
Weight of TF1-2A: 6.3 lbs. (2.9 kg)
Element Change Clearance: 3.50" (90 mm) MF2

SCHROEDER INDUSTRIES 215
