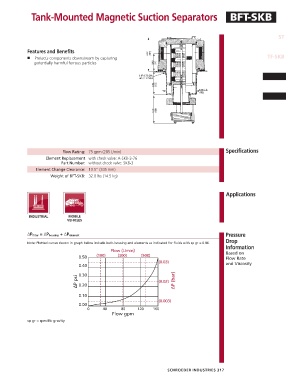

Tank-Mounted Magnetic Suction Separators BFT-SKB

ST

Features and Benefits
■ Protects components downstream by capturing TF-SKB
potentially harmful ferrous particles

KF3-SKB

BFT-SKB

Flow Rating: 75 gpm (285 L/min) Specifications
Element Replacement with check valve: A-SKB-3-76
Part Number: without check valve: SKB-3
Element Change Clearance: 13.5" (345 mm)
Weight of BFT-SKB: 32.0 lbs (14.5 kg)

Applications

ΔP filter = ΔP housing + ΔP element Pressure
Drop
Note: Plotted curves shown in graph below include both housing and elements as indicated for fluids with sp gr = 0.86.
Information
Flow (L/min) Based on
0.50 (100) (300) (500) Flow Rate
(0.03) and Viscosity
0.40
0.30
∆P psi 0.20 (0.02) ∆P (bar)

0.10
(0.003)
0.00
0 40 80 120 160
Flow gpm
sp gr = specific gravity
