P. 314

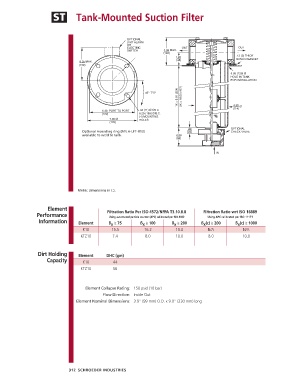

ST Tank-Mounted Suction Filter
Optional mounting ring (P/N A-LFT-813)
available to weld to tank.
Metric di men sions in ( ).
Element Filtration Ratio Per ISO 4572/NFPA T3.10.8.8 Filtration Ratio wrt ISO 16889
Performance Using automated particle counter (APC) calibrated per ISO 4402 Using APC calibrated per ISO 11171
Information Element ß ≥ 75 ß ≥ 100 ß ≥ 200 ß (c) ≥ 200 ß (c) ≥ 1000
x
x
x
x
x
K10 15.5 16.2 18.0 N/A N/A
KTZ10 7.4 8.0 10.0 8.0 10.0
Dirt Holding Element DHC (gm)
Capacity K10 44
KTZ10 56
Element Collapse Rating: 150 psid (10 bar)
Flow Direction: Inside Out
Element Nominal Dimensions: 3.9" (99 mm) O.D. x 9.0" (230 mm) long
312 SCHROEDER INDUSTRIES
