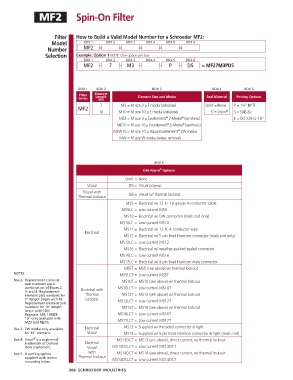

MF2 Spin-On Filter

Filter How to Build a Valid Model Number for a Schroeder MF2:
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6
Number MF2 – – – – –
Selection Example: Option 1 NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6
MF2 – 7 – M3 – – P – D5 = MF27M3PD5

BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
Filter Element Element Size and Media Seal Material Porting Options
Length
Series (in)
7 M3 = M size 3 µ E media (cellulose) Omit = None P = 1 ⁄4" NPTF
1
MF2
10 M10 = M size 10 µ E media (cellulose) V = Viton ® S = SAE-20
MZ3 = M size 3 µ Excellement Z-Media (synthetic) B = ISO 228 G-1 ⁄4"
®
®
1
MZ10 = M size 10 µ Excellement Z-Media (synthetic)
®
®
MZW10 = M size 10 µ Aqua-Excellement ZW media
™
MW = M size W media (water removal)
BOX 6
®
Dirt Alarm Options
Omit = None
Visual D5 = Visual pop-up
Visual with
Thermal Lockout D8 = Visual w/ thermal lockout
MS5 = Electrical w/ 12 in. 18 gauge 4-conductor cable
MS5LC = Low current MS5
MS10 = Electrical w/ DIN connector (male end only)
MS10LC = Low current MS10
MS11 = Electrical w/ 12 ft. 4-conductor wire
Electrical
MS12 = Electrical w/ 5 pin Brad Harrison connector (male end only)
MS12LC = Low current MS12
MS16 = Electrical w/ weather-packed sealed connector
MS16LC = Low current MS16
MS17LC = Electrical w/ 4 pin Brad Harrison male connector
MS5T = MS5 (see above) w/ thermal lockout
NOTES: MS5LCT = Low current MS5T
Box 2. Replacement element MS10T = MS10 (see above) w/ thermal lockout
part numbers are a
combination of Boxes 2, Electrical with MS10LCT = Low current MS10T
3, and 4. Replacement
element part numbers for Thermal MS12T = MS12 (see above) w/ thermal lockout
7" length begin with M. Lockout MS12LCT = Low current MS12T
Replacement element part
numbers for 10" length MS16T = MS16 (see above) w/ thermal lockout
begin with 10M.
Example: M3; 10MZ3 MS16LCT = Low current MS16T
10" only available with MS17LCT = Low current MS17T
MZ3 and MZ10.
Box 3. ZW media only available Electrical MS13 = Supplied w/ threaded connector & light
for 10" element. Visual MS14 = Supplied w/ 5 pin Brad Harrison connector & light (male end)
®
Box 4. Viton is a registered MS13DCT = MS13 (see above), direct current, w/ thermal lockout
trademark of DuPont Electrical
Dow Elastomers. Visual MS13DCLCT = Low current MS13DCT
Box 5. B porting option with MS14DCT = MS14 (see above), direct current, w/ thermal lockout
supplied with metric Thermal Lockout MS14DCLCT = Low current MS14DCT
mounting holes.
