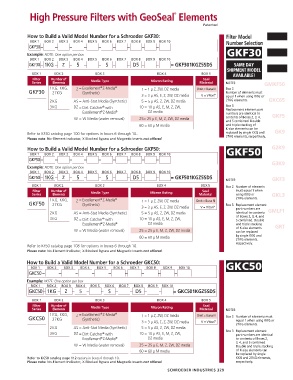

Page 331 - Schroeder - Hydraulic And Lube Filtration

High Pressure Filters with GeoSeal Elements
®
Patented

How to Build a Valid Model Number for a Schroeder GKF30: Filter Model GKF30
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9 BOX 10 Number Selection
GKF30– – – – – – – – –

Example: NOTE: One option per box GKF30 GKF50
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9 BOX 10
GKF30– 1KG – Z – 5 – – S – – D5 – – = GKF301KGZ5SD5 SAME DAY
SHIPMENT MODEL GKC50
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 AVAILABLE!
Filter Number of Seal
Series Elements Media Type Micron Rating Material NOTES: GMKF50
®
®
1KG, KKG, Z = Excellement Z-Media 1 = 1 µ Z, ZW, DZ media Omit = Buna N Box 2.
GKF30 27KG (Synthetic) Number of elements must
3 = 3 µ AS, E, Z, ZW, DZ media V = Viton ® equal 1 when using KKG or
2KG AS = Anti-Stat Media (Synthetic) 5 = 5 µ AS, Z, ZW, DZ media 27KG elements. GKC65
3KG DZ = Dirt Catcher with 10 = 10 µ AS, E, M, Z, ZW, Box 3.
®
Replacement element part
Excellement Z-Media ® DZ media numbers are identical to
®
W = W Media (water removal) 25= 25 µ E, M, Z, ZW, DZ media contents of Boxes 2, 3, 4, GKF5
and 5 combined. Double
60 = 60 µ M media and triple stacking of
K-size elements can be
Refer to KF30 catalog page 100 for options in boxes 6 through 10. replaced by single KKG and GK9
27KG elements, respectively.
Please note: No-Element Indicator, X Blocked Bypass and Magnetic Inserts not offered.
How to Build a Valid Model Number for a Schroeder GKF50: GKF50 G2K9
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9 BOX 10
GKF50– – – – – – – – –
G3K9
Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9 BOX 10
GKF50– 1KG – Z – 5 – – S – – D5 – – = GKF501KGZ5SD5 NOTES: GKF3
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 Box 2. Number of elements
Filter Number of Seal must equal 1 when
Series Elements Media Type Micron Rating Material using KKG or GKL3
®
®
1KG, KKG, Z = Excellement Z-Media 1 = 1 µ Z, ZW, DZ media Omit = Buna N 27KG elements.
GKF50 27KG (Synthetic) Box 3. Replacement element
3 = 3 µ AS, E, Z, ZW, DZ media V = Viton ® part numbers are
2KG AS = Anti-Stat Media (Synthetic) 5 = 5 µ AS, Z, ZW, DZ media identical to contents GMLF1
3KG DZ = Dirt Catcher with 10 = 10 µ AS, E, M, Z, ZW, of Boxes 2, 3, 4, and
®
5 combined. Double
®
Excellement Z-Media ® DZ media and triple stacking
of K-size elements GRT
W = W Media (water removal) 25 = 25 µ E, M, Z, ZW, DZ media can be replaced
60 = 60 µ M media by single KKG and
27KG elements,
respectively.
Refer to KF50 catalog page 108 for options in boxes 6 through 10.
Please note: No-Element Indicator, X Blocked Bypass and Magnetic Inserts not offered.
How to Build a Valid Model Number for a Schroeder GKC50:
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9 BOX 10 GKC50
GKC50 – – – – – – – – –
Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9 BOX 10
GKC50– 1KG – Z – 5 – – S – – D5 – – = GKC501KGZ5SD5

BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
Filter Number of Seal
Series Elements Media Type Micron Rating Material NOTES:
®
1KG, KKG, Z = Excellement Z-Media 1 = 1 µ Z, ZW, DZ media Omit = Buna N
®
GKC50 27KG (Synthetic) Box 2. Number of elements must
3 = 3 µ AS, E, Z, ZW, DZ media V = Viton ® equal 1 when using KKG or
27KG elements.
2KG AS = Anti-Stat Media (Synthetic) 5 = 5 µ AS, Z, ZW, DZ media
3KG DZ = Dirt Catcher with 10 = 10 µ AS, E, M, Z, ZW, Box 3. Replacement element
®
part numbers are identical
®
Excellement Z-Media ® DZ media to contents of Boxes 2,
3, 4, and 5 combined.
W = W Media (water removal) 25 = 25 µ E, M, Z, ZW, DZ media Double and triple stacking
60 = 60 µ M media of K-size elements can
be replaced by single
Refer to KC50 catalog page 112 options in boxes 6 through 10. KKG and 27KG elements,
Please note: No-Element Indicator, X Blocked Bypass and Magnetic Inserts not offered. respectively.
