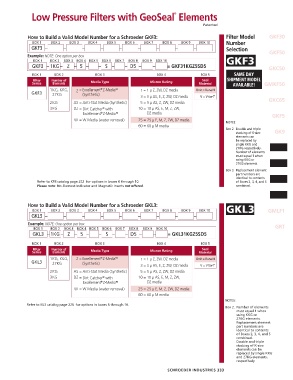

Page 335 - Schroeder - Hydraulic And Lube Filtration

Low Pressure Filters with GeoSeal Elements
®
Patented

How to Build a Valid Model Number for a Schroeder GKF3: Filter Model GKF30
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9 BOX 10 Number
GKF3 – – – – – – – – – Selection
Example: NOTE: One option per box GKF50
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9 BOX 10 GKF3
GKF3 – 1KG – Z – 5 – – S – – D5 – – = GKF31KGZ5SD5 GKC50

BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 SAME DAY
Filter Number of Seal SHIPMENT MODEL
Series Elements Media Type Micron Rating Material AVAILABLE! GMKF50
1KG, KKG, Z = Excellement Z-Media 1 = 1 µ Z, ZW, DZ media Omit = Buna N
®
TM
GKF3 27KG (Synthetic) 3 = 3 µ AS, E, Z, ZW, DZ media V = Viton ®
2KG AS = Anti-Stat Media (Synthetic) 5 = 5 µ AS, Z, ZW, DZ media GKC65
3KG DZ = Dirt Catcher with 10 = 10 µ AS, E, M, Z, ZW,
®
Excellement Z-Media TM DZ media GKF5
®
W = W Media (water removal) 25 = 25 µ E, M, Z, ZW, DZ media NOTES:
60 = 60 µ M media
Box 2. Double and triple
stacking of K-size GK9
elements can
be replaced by
single KKG and
27KG respectively. G2K9
Number of elements
must equal 1 when
using KKG or
27KG elements. G3K9
Box 3. Replacement element
part numbers are
identical to contents GKF3
Refer to KF3 catalog page 222 for options in boxes 6 through 10. of Boxes 2, 3, 4, and 5
Please note: No-Element Indicator and Magnetic Inserts not offered. combined.
GKL3

How to Build a Valid Model Number for a Schroeder GKL3:
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9 BOX 10 GKL3 GMLF1
GKL3 – – – – – – – – –

Example: NOTE: One option per box GRT
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9 BOX 10
GKL3 – 1KG – Z – 5 – – S – – D5 – – = GKL31KGZ5SD5

BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
Filter Number of Seal
Series Elements Media Type Micron Rating Material
1KG, KKG, Z = Excellement Z-Media 1 = 1 µ Z, ZW, DZ media Omit = Buna N
®
TM
GKL3 27KG (Synthetic) 3 = 3 µ AS, E, Z, ZW, DZ media V = Viton ®
2KG AS = Anti-Stat Media (Synthetic) 5 = 5 µ AS, Z, ZW, DZ media
3KG DZ = Dirt Catcher with 10 = 10 µ AS, E, M, Z, ZW,
®
®
Excellement Z-Media TM DZ media
W = W Media (water removal) 25 = 25 µ E, M, Z, ZW, DZ media
60 = 60 µ M media
NOTES:
Refer to KL3 catalog page 226 for options in boxes 6 through 10.
Box 2. Number of elements
must equal 1 when
using KKG or
27KG elements.
Replacement element
part numbers are
identical to contents
of Boxes 2, 3, 4, and 5
combined.
Double and triple
stacking of K-size
elements can be
replaced by single KKG
and 27KG elements,
respectively.
SCHROEDER INDUSTRIES 333
