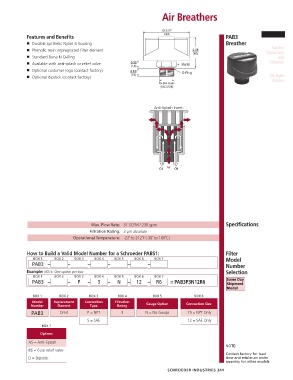

Page 343 - Schroeder - Hydraulic And Lube Filtration

Air Breathers

Features and Benefits PAB3 Air Breathers
■ Durable synthetic Nylon 6 housing Breather
Suction
■ Phenolic resin impregnated filter element
Separators
■ Standard Buna N O-Ring and
■ Available with anti-splash or relief valve Strainers
■ Optional customer logo (contact factory)
■ Optional dipstick (contact factory) Oil Sight
Glasses

Anti-Splash Insert:

Max. Flow Rate: 31 SCFM / 230 gpm Specifications
Filtration Rating: 3 µm absolute
Operational Temperature: -22˚ to 212˚F (-30˚ to 100˚C)

How to Build a Valid Model Number for a Schroeder PABS1: Filter
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 Model
PAB3 – – – – – – Number
Example: NOTE: One option per box Selection
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7
PAB3 – – P – 3 – N – 12 – R6 = PAB3P3N12R6 Same Day
Shipment
Model
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6
Model Replacement Connection Filtration
Number Element Type Rating Gauge Option Connection Size
PAB3 Omit P = NPT 3 N = No Gauge .75 = NPT Only
S = SAE 12 = SAE Only
BOX 7
Options
AS = Anti-Splash
NOTE:
R6 = 6 psi relief valve
Contact factory for lead
D = Dipstick time and minimum order
quantity for other models.
SCHROEDER INDUSTRIES 341
