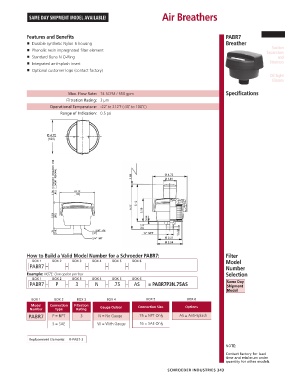

Page 345 - Schroeder - Hydraulic And Lube Filtration

SAME DAY SHIPMENT MODEL AVAILABLE! Air Breathers

Features and Benefits PABR7 Air Breathers
■ Durable synthetic Nylon 6 housing Breather
Suction
■ Phenolic resin impregnated filter element
Separators
■ Standard Buna N O-Ring and
■ Integrated anti-splash insert Strainers
■ Optional customer logo (contact factory)
Oil Sight
Glasses

Max. Flow Rate: 74 SCFM / 550 gpm Specifications
Filtration Rating: 3 µm
Operational Temperature: -22˚ to 212˚F (-30˚ to 100˚C)
Range of Indication: 0.5 psi

How to Build a Valid Model Number for a Schroeder PABR7: Filter
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 Model
PABR7 – – – – – Number
Example: NOTE: One option per box Selection
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6
PABR7 – P – 3 – N – .75 – AS = PABR7P3N.75AS Same Day
Shipment
Model

BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6
Model Connection Filtration Connection Size Options
Number Type Rating Gauge Option
PABR7 P = NPT 3 N = No Gauge .75 = NPT Only AS = Anti-Splash
S = SAE W = With Gauge 16 = SAE Only

Replacement Elements: R-PAB7-3
NOTE:
Contact factory for lead
time and minimum order
quantity for other models.
SCHROEDER INDUSTRIES 343
