P. 55

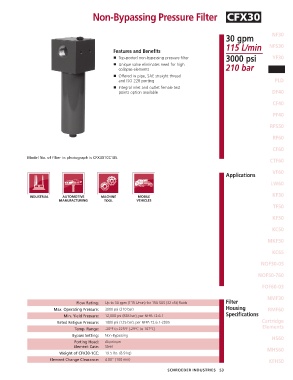

Non-Bypassing Pressure Filter CFX30
30 gpm NF30
115 L/min NFS30
Features and Benefits
3000 psi
■ Top-ported non-bypassing pressure filter YF30
■ Unique valve eliminates need for high
collapse elements 210 bar CFX30
■ Offered in pipe, SAE straight thread
and ISO 228 porting PLD
■ Integral inlet and outlet female test
points option available DF40
CF40
PF40
RFS50
RF60
CF60
Model No. of filter in photograph is CFX301CC10S.
CTF60
VF60
Applications
LW60
KF30
TF50
KF50
KC50
MKF50
KC65
NOF30-05
NOF50-760
FOF60-03
NMF30
Flow Rating: Up to 30 gpm (115 L/min) for 150 SUS (32 cSt) fluids Filter
Max. Operating Pressure: 3000 psi (210 bar) Housing RMF60
Min. Yield Pressure: 12,000 psi (828 bar), per NFPA T2.6.1 Specifications
Rated Fatigue Pressure: 1800 psi (125 bar), per NFPA T2.6.1-2005 Cartridge
Temp. Range: -20°F to 225°F (-29°C to 107°C) Elements
Bypass Setting: Non-Bypassing HS60
Porting Head: Aluminum
Element Case: Steel
Weight of CFX30-1CC: 19.5 lbs. (8.9 kg) MHS60
Element Change Clearance: 4.00" (100 mm) KFH50
SCHROEDER INDUSTRIES 53
