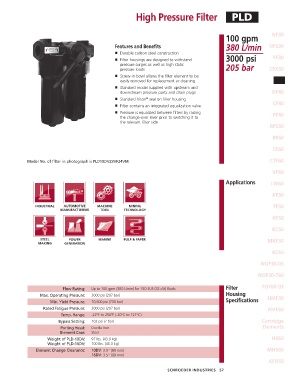

High Pressure Filter PLD

100 gpm NF30
Features and Benefits 380 L/min NFS30
■ Durable carbon steel construction
3000 psi YF30
■ Filter housings are designed to withstand
pressure surges as well as high static 205 bar
pressure loads CFX30
■ Screw-in bowl allows the filter element to be
easily removed for replacement or cleaning PLD
■ Standard model supplied with upstream and
downstream pressure ports and drain plugs DF40
®
■ Standard Viton seal on filter housing
CF40
■ Filter contains an integrated equalization valve
■ Pressure is equalized between filters by raising PF40
the change-over lever prior to switching it to
the relevant filter side
RFS50

RF60

CF60

Model No. of filter in photograph is PLD10DVZ3VF24VM. CTF60
VF60

Applications LW60

KF30

TF50

KF50

KC50

MKF50

KC65

NOF30-05

NOF50-760

Flow Rating: Up to 100 gpm (380 L/min) for 150 SUS (32 cSt) fluids Filter FOF60-03
Max. Operating Pressure: 3000 psi (207 bar) Housing NMF30
Min. Yield Pressure: 10,600 psi (730 bar) Specifications
Rated Fatigue Pressure: 3000 psi (207 bar) RMF60
Temp. Range: -22°F to 250°F (-30°C to 121°C)
Bypass Setting: 102 psi (7 bar) Cartridge
Porting Head: Ductile Iron Elements
Element Case: Steel
Weight of PLD-10DV: 97 lbs. (43.9 kg) HS60
Weight of PLD-16DV: 100 lbs. (45.3 kg)
Element Change Clearance: 10DV: 3.5" (89 mm) MHS60
16DV: 3.5" (89 mm)
KFH50
