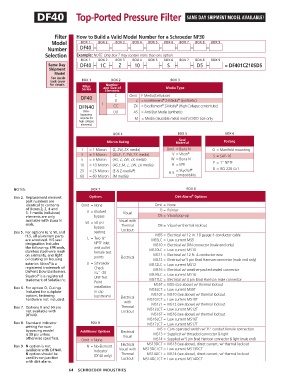

DF40 Top-Ported Pressure Filter SAME DAY SHIPMENT MODEL AVAILABLE!

Filter How to Build a Valid Model Number for a Schroeder NF30
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9
Number DF40 – – – – – – – –
Selection Example: NOTE: Only box 7 may contain more than one option
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9
Same Day DF40 – 1C – Z – 10 – – S – – D5 – = DF401CZ10SD5
Shipment
Model
See inside
back cover BOX 1 BOX 2 BOX 3
for details. Filter Number
Series and Size of Media Type
Elements
E Media(Cellulose)
DF40 C Omit Z = Excellement Z-Media (synthetic)
D
®
®
1
®
DFN40 CC ZX = Excelllement Z-Media (High Collapse center tube)
®
(Non- DD AS = Anti-Stat Media (synthetic)
bypassing:
requires ZX M = Media (reusable metal mesh) D/DD size only
high collapse
elements)

BOX 4 BOX 5 BOX 6
Seal
Micron Rating Material Porting
1 = 1 Micron (Z, ZW, ZX media) Omit = Buna N O = Manifold mounting
3 = 3 Micron (AS,E, Z, ZW, ZX media) V = Viton ® S = SAE-16
5 = 5 Micron (AS, Z, ZW, ZX media) W = Buna N
10 = 10 Micron (AS,E,M, Z, ZW, ZX media) H = EPR P = 1" NPTF
®
25 = 25 Micron (E & Z-media ) H.5 = Skydrol B = ISO 228 G-1
®
60 = 60 Micron (M media) compatibility
NOTES: BOX 7 BOX 8
®
Box 2. Replacement element Options Dirt Alarm Options
part numbers are
identical to contents Omit = None Omit = None
of Boxes 2, 3, 4 and D = Pointer
5. E media (cellulose) X = Blocked Visual
elements are only bypass D5 = Visual pop-up
available with Buna N 50 = 50 psi Visual with
seals. Thermal D8 = Visual w/ thermal lockout
bypass
Box 5. For options H, V, W, and seeting Lockout
H.5, all aluminum parts 1 MS5 = Electrical w/ 12 in. 18 gauge 4-conductor cable
are anodized. H.5 seal L = Two ⁄4" MS5LC = Low current MS5
designation includes NPTF inlet MS10 = Electrical w/ DIN connector (male end only)
the following: EPR seals, and outlet
stainless steel wire mesh female test MS10LC = Low current MS10
on elements, and light points MS11 = Electrical w/ 12 ft. 4-conductor wire
oil coating on housing Electrical MS12 = Electrical w/ 5 pin Brad Harrison connector (male end only)
exterior. Viton is a U = Schroeder MS12LC = Low current MS12
®
registered trademark of Check MS16 = Electrical w/ weather-packed sealed connector
DuPont Dow Elastomers. 7 ⁄16" -20
Skydrol is a registered UNF Test MS16LC = Low current MS16
®
trade mark of Solutia Inc. MS17LC = Electrical w/ 4 pin Brad Harrison male connector
Point MS5T = MS5 (see above) w/ thermal lockout
Box 6. For option O, O-rings installation MS5LCT = Low current MS5T
included for subplate in cap
option; fastening (upstream) Electrical MS10T = MS10 (see above) w/ thermal lockout
hardware not included. MS10LCT = Low current MS10T
with MS12T = MS12 (see above) w/ thermal lockout
Box 7. Options X and 50 are Thermal MS12LCT = Low current MS12T
not available with Lockout
DFN40. MS16T = MS16 (see above) w/ thermal lockout
MS16LCT = Low current MS16T
Box 8. Standard indicator BOX 9 MS17LCT = Low current MS17T
setting for non-
bypassing model Additional Options Electrical MS = Cam operated switch w/ ½" conduit female connection
is 50 psi unless Visual MS13 = Supplied w/ threaded connector & light
otherwise specified. Omit = None MS14 = Supplied w/ 5 pin Brad Harrison connector & light (male end)
Electrical MS13DCT = MS13 (see above), direct current, w/ thermal lockout
Box 9. N option is not N = No-Element
available with DFN40. Indicator Visual with MS13DCLCT = Low current MS13DCT
N option should be (DF40 only) Thermal MS14DCT = MS14 (see above), direct current, w/ thermal lockout
used in conjunction Lockout MS14DCLCT = Low current MS14DCT
with dirt alarm.
64 SCHROEDER INDUSTRIES
