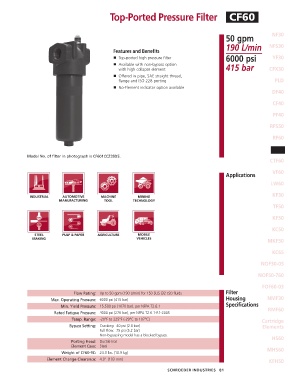

P. 83
Top-Ported Pressure Filter CF60
50 gpm NF30
190 L/min NFS30
Features and Benefits
6000 psi
■ Top-ported high pressure filter YF30
■ Available with non-bypass option
with high collapse element 415 bar CFX30
■ Offered in pipe, SAE straight thread,
flange and ISO 228 porting PLD
■ No-Element indicator option available
DF40
CF40
PF40
RFS50
RF60
CF60
Model No. of filter in photograph is CF601CCZ3SD5.
CTF60
VF60
Applications
LW60
KF30
TF50
KF50
KC50
MKF50
KC65
NOF30-05
NOF50-760
FOF60-03
Flow Rating: Up to 50 gpm (190 L/min) for 150 SUS (32 cSt) fluids Filter
Max. Operating Pressure: 6000 psi (415 bar) Housing NMF30
Min. Yield Pressure: 15,500 psi (1070 bar), per NFPA T2.6.1 Specifications RMF60
Rated Fatigue Pressure: 4000 psi (276 bar), per NFPA T2.6.1-R1-2005
Temp. Range: -20°F to 225°F (-29°C to 107°C) Cartridge
Bypass Setting: Cracking: 40 psi (2.8 bar) Elements
Full Flow: 75 psi (5.2 bar)
Non-bypassing model has a blocked bypass. HS60
Porting Head: Ductile Iron
Element Case: Steel
Weight of CF60-9C: 24.0 lbs. (10.9 kg) MHS60
Element Change Clearance: 4.0" (103 mm) KFH50
SCHROEDER INDUSTRIES 81
