RFS50 Manifold Mounted Pres sure Filter

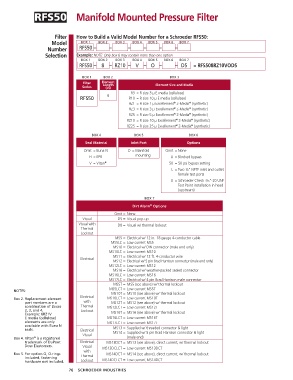

Filter How to Build a Valid Model Number for a Schroeder RFS50:
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7
Number RFS50 – – – – – –
Selection Example: NOTE: Only box 6 may contain more than one option
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7
RFS50 – 8 – RZ10 – V – O – – D5 = RFS508RZ10VOD5

BOX 1 BOX 2 BOX 3
Filter Element
Series Length Element Size and Media
(in)
R3 = R size 3 µ E media (cellulose)
RFS50 8 R10 = R size 10 µ E media (cellulose)
RZ1 = R size 1 µ Excellement Z-Media (synthetic)
®
®
®
®
RZ3 = R size 3 µ Excellement Z-Media (synthetic)
®
®
RZ5 = R size 5 µ Excellement Z-Media (synthetic)
RZ10 = R size 10 µ Excellement Z-Media (synthetic)
®
®
®
®
RZ25 = R size 25 µ Excellement Z-Media (synthetic)
BOX 4 BOX 5 BOX 6
Seal Material Inlet Port Options
Omit = Buna N O = Manifold Omit = None
H = EPR mounting X = Blocked bypass
V = Viton ® 50 = 50 psi bypass setting
1
L = Two ⁄4" NPTF inlet and outlet
female test ports
7
U = Schroeder Check ⁄16"-20 UNF
Test Point installation in head
(upstream)
BOX 7
Dirt Alarm Options
®
Omit = None
Visual D5 = Visual pop-up
Visual with D8 = Visual w/ thermal lockout
Thermal
Lockout
MS5 = Electrical w/ 12 in. 18 gauge 4-conductor cable
MS5LC = Low current MS5
MS10 = Electrical w/ DIN connector (male end only)
MS10LC = Low current MS10
MS11 = Electrical w/ 12 ft. 4-conductor wire
Electrical
MS12 = Electrical w/ 5 pin Brad Harrison connector (male end only)
MS12LC = Low current MS12
MS16 = Electrical w/ weather-packed sealed connector
MS16LC = Low current MS16
MS17LC = Electrical w/ 4 pin Brad Harrison male connector
MS5T = MS5 (see above) w/ thermal lockout
MS5LCT = Low current MS5T
NOTES:
MS10T = MS10 (see above) w/ thermal lockout
Electrical
Box 2. Replacement element MS10LCT = Low current MS10T
part numbers are a with MS12T = MS12 (see above) w/ thermal lockout
combination of Boxes Thermal MS12LCT = Low current MS12T
2, 3, and 4. Lockout
Example: 8RZ1V MS16T = MS16 (see above) w/ thermal lockout
E media (cellulose) MS16LCT = Low current MS16T
elements are only MS17LCT = Low current MS17T
available with Buna N
seals. Electrical MS13 = Supplied w/ threaded connector & light
Visual MS14 = Supplied w/ 5 pin Brad Harrison connector & light
Box 4. Viton is a registered (male end)
®
trademark of DuPont Electrical MS13DCT = MS13 (see above), direct current, w/ thermal lockout
Dow Elastomers. Visual MS13DCLCT = Low current MS13DCT
with
Box 5. For option O, O-rings Thermal MS14DCT = MS14 (see above), direct current, w/ thermal lockout
included, fastening MS14DCLCT = Low current MS14DCT
hardware not included. Lockout
