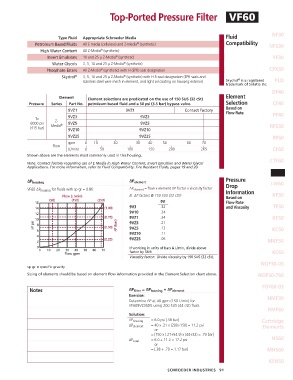

Top-Ported Pressure Filter VF60

Type Fluid Appropriate Schroeder Media Fluid NF30
Petroleum Based Fluids All E media (cellulose) and Z-Media (synthetic) Compatibility NFS30
®
High Water Content All Z-Media (synthetic)
®
Invert Emulsions 10 and 25 µ Z-Media (synthetic) YF30
®
Water Glycols 3, 5, 10 and 25 µ Z-Media (synthetic)
®
Phosphate Esters All Z-Media (synthetic) with H (EPR) seal designation CFX30
®
®
Skydrol ® 3, 5, 10 and 25 µ Z-Media (synthetic) with H.5 seal designation (EPR seals and ®
stainless steel wire mesh in element, and light oil coating on housing exterior) Skydrol is a registered PLD
trademark of Solutia Inc.
DF40
Elem ent Element selections are predicated on the use of 150 SUS (32 cSt) Element
Pressure Series Part No. petroleum based fluid and a 50 psi (3.5 bar) bypass valve. Selection CF40
Based on
9VZ1 9VZ1 Contact Factory Flow Rate
9VZ3 9VZ3 PF40
To Z-
6000 psi ® 9VZ5 9VZ5
(415 bar) Media 9VZ10 9VZ10 RFS50
9VZ25 9VZ25 RF60
gpm 0 10 20 30 40 50 60 70
Flow
(L/min) 0 50 100 150 200 265 CF60
Shown above are the elements most commonly used in this housing.
CTF60
Note: Contact factory regarding use of E Media in High Water Content, Invert Emulsion and Water Glycol
Applications. For more information, refer to Fluid Compatibility: Fire Resistant Fluids, pages 19 and 20.
VF60
∆P housing ∆P element Pressure LW60

VF60 ∆P housing for fluids with sp gr = 0.86: ∆P element = flow x element ∆P factor x viscosity factor Drop
Information
El. ∆P factors @ 150 SUS (32 cSt): Based on KF30
9V Flow Rate
9V3 .32 and Viscosity TF50
9V10 .24
9VZ1 .34 KF50
9VZ3 .21
9VZ5 .13 KC50
9VZ10 .11
9VZ25 .06
MKF50
If working in units of bars & L/min, divide above
factor by 54.9. KC65
Viscosity factor: Divide viscosity by 150 SUS (32 cSt).
NOF30-05
sp gr = specific gravity
Sizing of elements should be based on element flow information provided in the Element Selection chart above. NOF50-760

FOF60-03
Notes ∆P filter = ∆P housing + ∆P element
Exercise: NMF30
Determine ∆P at 40 gpm (150 L/min) for
VF609VZ3SD5 using 200 SUS (44 cSt) fluid.
RMF60
Solution:
∆P housing = 6.0 psi [.38 bar] Cartridge
∆P element = 40 x .21 x (200÷150) = 11.2 psi Elements
or
= [150 x (.21÷54.9) x (44÷32) = .79 bar]
∆P total = 6.0 + 11.2 = 17.2 psi HS60
or
= [.38 + .79 = 1.17 bar] MHS60

KFH50

SCHROEDER INDUSTRIES 91
