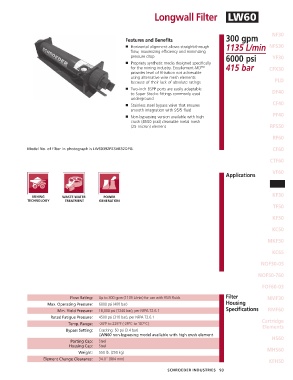

Longwall Filter LW60

Features and Benefits 300 gpm NF30
■ Horizontal alignment allows straight-through 1135 L/min NFS30
flow, maximizing efficiency and minimizing
pressure drop 6000 psi YF30
■ Propriety synthetic media designed specifically
for the mining industry. Excellement-MD 415 bar CFX30
TM
provides level of filtration not achievable
using alternative wire mesh elements
because of their lack of absolute ratings PLD
■ Two-inch BSPP ports are easily adaptable
to Super Stecko fittings commonly used DF40
underground
■ Stainless steel bypass valve that ensures CF40
smooth integration with 95/5 fluid
■ Non-bypassing version available with high PF40
crush (4500 psid) cleanable metal mesh
(25 micron) element RFS50

RF60

Model No. of filter in photograph is LW6039ZPZ5VB32DPG. CF60

CTF60

VF60
Applications
LW60

KF30

TF50

KF50

KC50

MKF50

KC65

NOF30-05

NOF50-760

FOF60-03

Flow Rating: Up to 300 gpm (1135 L/min) for use with 95/5 fluids Filter NMF30
Max. Operating Pressure: 6000 psi (400 bar) Housing
Min. Yield Pressure: 18,000 psi (1240 bar), per NFPA T2.6.1 Specifications RMF60
Rated Fatigue Pressure: 4500 psi (310 bar), per NFPA T2.6.1
Cartridge
Temp. Range: -20°F to 225°F (-29°C to 107°C) Elements
Bypass Setting: Cracking: 50 psi (3.4 bar)
LWN60 non-bypassing model available with high crush element
Porting Cap: Steel HS60
Housing Cap: Steel
Weight: 550 lb. (250 kg) MHS60
Element Change Clearance: 34.0" (864 mm)
KFH50
