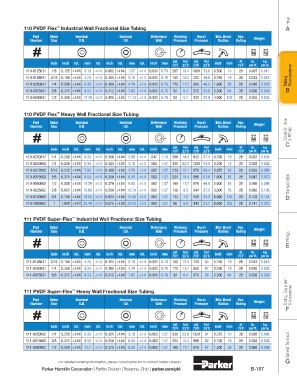

Page 219 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460
P. 219
Hose
110 PVDF Flex Industrial Wall Fractional Size Tubing A
™
Part Order Nominal Nominal Reference Working Burst Min. Bend Vac.
Number Size O.D. I.D. Wall Pressure Pressure Radius Rating Weight
inch inch tol. mm tol. inch tol. mm tol. inch mm psi bar psi bar inch mm at lb. kg.
73˚F 23˚C 73˚F 23˚C 73˚F per ft. per m.
110-0125031 1/8 0.125 ± 0.005 3.18 ± 0.13 0.062 ± 0.005 1.57 ± 0.13 0.031 0.79 267 18.4 1068 73.6 0.500 13 28 0.007 0.011
110-0188031 3/16 0.188 ± 0.005 4.78 ± 0.13 0.125 ± 0.005 3.18 ± 0.13 0.031 0.79 180 12.4 720 49.6 0.750 19 28 0.012 0.018 Tubing Fluoropolymer
110-0250031 1/4 0.250 ± 0.005 6.35 ± 0.13 0.188 ± 0.005 4.78 ± 0.13 0.031 0.79 170 11.7 680 46.8 1.000 25 28 0.016 0.025
110-0375031 3/8 0.375 ± 0.005 9.52 ± 0.13 0.312 ± 0.005 7.92 ± 0.13 0.031 0.79 93 6.4 372 25.6 2.500 64 28 0.026 0.039 B
110-0500031 1/2 0.500 ± 0.005 12.70 ± 0.13 0.438 ± 0.005 11.13 ± 0.13 0.031 0.79 83 5.7 332 22.9 4.000 102 28 0.035 0.053
110 PVDF Flex Heavy Wall Fractional Size Tubing
™
Coiled Air Hose & Fittings
Part Order Nominal Nominal Reference Working Burst Min. Bend Vac.
Number Size O.D. I.D. Wall Pressure Pressure Radius Rating Weight
C
inch inch tol. mm tol. inch tol. mm tol. inch mm psi bar psi bar inch mm at lb. kg.
73˚F 23˚C 73˚F 23˚C 73˚F per ft. per m.
110-0250047 1/4 0.250 ± 0.005 6.35 ± 0.13 0.156 ± 0.005 3.96 ± 0.13 .047 1.19 208 14.3 832 57.4 0.750 19 28 0.023 0.034
110-0250062 1/4 0.250 ± 0.005 6.35 ± 0.13 0.125 ± 0.005 3.18 ± 0.13 .062 1.57 330 22.8 1320 91.0 0.500 13 28 0.028 0.042
110-0312062 5/16 0.312 ± 0.005 7.92 ± 0.13 0.188 ± 0.005 4.78 ± 0.13 .062 1.57 219 15.1 876 60.4 0.875 22 28 0.038 0.056
110-0375062 3/8 0.375 ± 0.005 9.52 ± 0.13 0.250 ± 0.005 6.35 ± 0.13 .062 1.57 224 15.4 896 61.8 1.000 25 28 0.047 0.070
110-0500062 1/2 0.500 ± 0.005 12.70 ± 0.13 0.370 ± 0.005 9.40 ± 0.13 .062 1.57 169 11.7 676 46.6 2.000 51 28 0.066 0.098 Transportation
110-0625062 5/8 0.625 ± 0.005 15.88 ± 0.13 0.500 ± 0.005 12.70 ± 0.13 .062 1.57 136 9.3 544 37.5 3.000 76 28 0.085 0.126
110-0750062 3/4 0.750 ± 0.006 19.05 ± 0.15 0.625 ± 0.006 15.88 ± 0.15 .062 1.57 114 7.9 456 31.4 6.000 152 28 0.103 0.154 D
110-1000062 1 1.000 ± 0.010 25.40 ± 0.25 0.875 ± 0.008 22.22 ± 0.25 .062 1.57 86 5.9 344 23.7 8.000 203 28 0.141 0.210
111 PVDF Super-Flex Industrial Wall Fractional Size Tubing
™
Part Order Nominal Nominal Reference Working Burst Min. Bend Vac.
Number Size O.D. I.D. Wall Pressure Pressure Radius Rating Weight
Fittings
E
inch inch tol. mm tol. inch tol. mm tol. inch mm psi bar psi bar inch mm at lb. kg.
73˚F 23˚C 73˚F 23˚C 73˚F per ft. per m.
111-0188031 3/16 0.188 ± 0.005 4.78 ± 0.13 0.125 ± 0.005 3.18 ± 0.13 0.031 0.79 180 12.4 720 50 0.750 19 28 0.012 0.018
111-0250031 1/4 0.250 ± 0.005 6.35 ± 0.13 0.188 ± 0.005 4.78 ± 0.13 0.031 0.79 170 11.7 680 47 0.750 19 28 0.016 0.025
111-0375031 3/8 0.375 ± 0.005 9.53 ± 0.13 0.312 ± 0.005 7.92 ± 0.13 0.031 0.79 93 6.4 372 26 2.500 64 28 0.026 0.039
Tooling, Equipment
111 PVDF Super-Flex Heavy Wall Fractional Size Tubing
™
Part Order Nominal Nominal Reference Working Burst Min. Bend Vac. & Accessories
Number Size O.D. I.D. Wall Pressure Pressure Radius Rating Weight
F
inch inch tol. mm tol. inch tol. mm tol. inch mm psi bar psi bar inch mm at lb. kg.
73˚F 23˚C 73˚F 23˚C 73˚F per ft. per m.
111-0250062 1/4 0.250 ± 0.005 6.35 ± 0.13 0.125 ± 0.005 3.18 ± 0.13 0.062 1.57 330 22.8 1320 91 0.375 10 28 0.028 0.042
General Technical
111-0375062 3/8 0.375 ± 0.005 9.52 ± 0.13 0.250 ± 0.005 6.35 ± 0.13 0.062 1.57 224 15.4 896 62 0.750 19 28 0.038 0.056
111-0500062 1/2 0.500 ± 0.005 12.7 ± 0.13 0.375 ± 0.005 9.52 ± 0.13 0.062 1.57 169 11.7 676 47 1.500 38 28 0.066 0.098
For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd B-107
