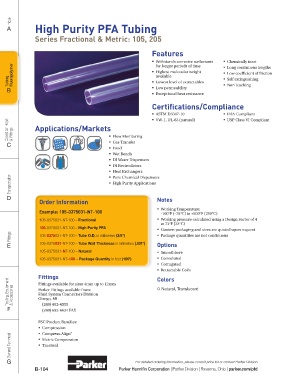

Page 216 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
A High Purity PFA Tubing

Series Fractional & Metric: 105, 205

Features

ƒ Withstands corrosive surfactants ƒ Chemically inert
for longer periods of time
ƒ Long continuous lengths
available
Tubing Fluoropolymer ƒ Highest molecular weight ƒ Low coefficient of friction
ƒ Self extinguishing
ƒ Lowest level of extractables
ƒ Non leaching
B ƒ Low permeability
ƒ Exceptional heat resistance
Certifications/Compliance

ƒ ASTM D3307-10 ƒ FDA Compliant
ƒ VW-1, UL-83 (natural)
Coiled Air Hose & Fittings Applications/Markets ƒ Flow Monitoring
ƒ USP Class VI Compliant

C ƒ Gas Transfer
ƒ Food
ƒ Wet Bench
ƒ DI Water Dispensers
ƒ DI Recirculators
ƒ Heat Exchangers
Transportation ƒ High Purity Applications
ƒ Pure Chemical Dispensers

D Notes
Order Information
ƒ Working Temperature:
Example: 105-0375031-NT-100 -100°F (-75°C) to +500°F (260°C)
105-0375031-NT-100 – Fractional ƒ Working pressure calculated using a Design Factor of 4
at 73°F (23°C)
105-0375031-NT-100 – High Purity PFA ƒ Custom packaging and sizes are quoted upon request
Fittings 105-0375031-NT-100 – Tube O.D. in millimeters (3/8") ƒ Package quantities are not continuous
E 105-0375031-NT-100 – Tube Wall Thickness in millimeters (.031") Options
105-0375031-NT-100 – Natural ƒ Smoothbore
105-0375031-NT-100 – Package Quantity in feet (100') ƒ Convoluted
ƒ Corrugated
ƒ Retractable Coils
Fittings Colors
Tooling, Equipment & Accessories Fittings available for sizes 4mm up to 12mm Natural, Translucent

Parker Fittings available from:
Fluid System Connectors Division
Otsego, MI

F (269) 692-6555
(269) 692-6634 FAX
FSC Product Families:
ƒ Compression
ƒ Compress-Align®
General Technical ƒ Metric Compression
ƒ TrueSeal

G For detailed ordering information, please consult price list or contact Parflex Division.
B-104 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
