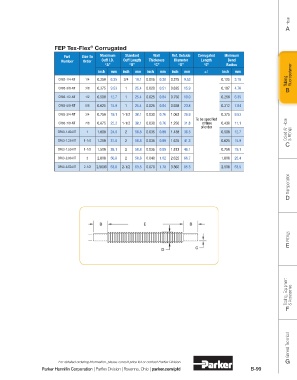

Page 211 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
A

FEP Tex-Flex Corrugated
®
Part Size To Maximum Standard Wall Ref. Outside Corrugated Minimum
Number Order Cuff I.D. Cuff Length Thickness Diameter Length Bend
“A” “B” “C” “D” “E” Radius
inch mm inch mm inch mm inch mm ±1 inch mm Fluoropolymer
Tubing
CR03-1/4-NT 1/4 0.250 6.35 3/4 19.1 0.015 0.38 0.375 9.53 0.125 3.18
CR03-3/8-NT 3/8 0.375 9.53 1 25.4 0.020 0.51 0.625 15.9 0.187 4.76
B
CR03-1/2-NT 1/2 0.500 12.7 1 25.4 0.025 0.64 0.750 19.0 0.250 6.35

CR03-5/8-NT 5/8 0.625 15.9 1 25.4 0.025 0.64 0.938 23.8 0.312 7.94
CR03-3/4-NT 3/4 0.750 19.1 1-1/2 38.1 0.030 0.76 1.063 26.9 0.375 9.53
To be specified
CR03-7/8-NT 7/8 0.875 22.2 1-1/2 38.1 0.030 0.76 1.250 31.8 at time 0.438 11.1
of order
CR03-1.00-NT 1 1.000 24.8 2 50.8 0.035 0.89 1.438 36.5 0.500 12.7 Coiled Air Hose & Fittings

CR03-1.25-NT 1-1/4 1.250 31.8 2 50.8 0.035 0.89 1.625 41.3 0.625 15.9
C
CR03-1.50-NT 1-1/2 1.500 38.1 2 50.8 0.035 0.89 1.813 46.1 0.750 19.1
CR03-2.00-NT 2 2.000 50.8 2 50.8 0.040 1.02 2.625 66.7 1.000 25.4
CR03-2.50-NT 2-1/2 2.5000 63.8 2-1/2 63.5 0.070 1.78 3.360 85.3 2.500 63.5

Transportation

D

Fittings
E

Tooling, Equipment & Accessories

F

General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd B-99
