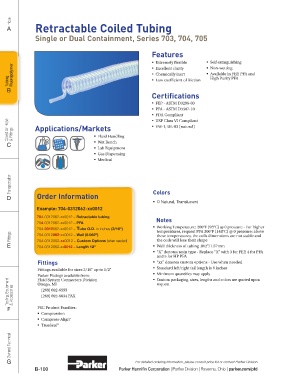

Page 212 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
A Retractable Coiled Tubing
Single or Dual Containment, Series 703, 704, 705

Features

ƒ Extremely flexible ƒ Self extinguishing
ƒ Non-wetting
ƒ Excellent clarity
Tubing Fluoropolymer ƒ Chemically inert ƒ Available in FEP, PFA and
High Purity PFA
ƒ Low coefficient of friction
B
Certifications

ƒ FEP - ASTM D3296-03
ƒ PFA - ASTM D3307-10
ƒ FDA Compliant
Coiled Air Hose & Fittings Applications/Markets ƒ VW-1, UL-83 (natural)
ƒ USP Class VI Compliant

ƒ Fluid Handling
C ƒ Wet Bench
ƒ Lab Equipment
ƒ Gas Dispensing
ƒ Medical

Transportation

D Order Information Colors
ƒ Natural, Translucent
Example: 704-0312062-xx0012
704-0312062-xx0012 – Retractable tubing Notes
704-0312062-xx0012 – PFA
704-0312062-xx0012 – Tube O.D. in inches (3/16") ƒ Working Temperature: 200°F (93°C) @ 0 pressure - For higher
temperatures, request PFA 300°F (148°C) @ 0 pressure; above
Fittings 704-0312062-xx0012 – Wall (0.062") these temperatures, the coils dimensions are not stable and
the coils will lose their shape
704-0312062-xx0012 – Custom Options (when needed)
E 704-0312062-xx0012 – Length 12" ƒ Wall thickness of tubing .062"/1.57mm
ƒ “X” denotes resin type - Replace “X” with 3 for FEP, 4 for PFA
and 5 for HP PFA
Fittings ƒ “xx” denotes custom options - Use when needed
Fittings available for sizes 3/16" up to 1/2" ƒ Standard left/right tail length is 6 inches
Parker Fittings available from: ƒ Minimum quantities may apply
Tooling, Equipment & Accessories Otsego, MI request
ƒ Custom packaging, sizes, lengths and colors are quoted upon
Fluid System Connectors Division
(269) 692-6555
(269) 692-6634 FAX

F FSC Product Families:
ƒ Compression
ƒ Compress-Align®
ƒ TrueSeal™

General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
B-100 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
