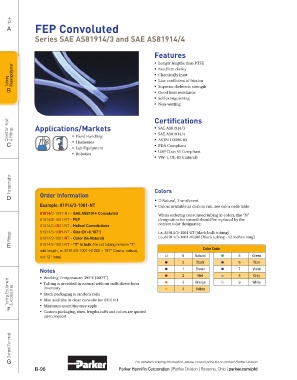

Page 208 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
A FEP Convoluted

Series SAE AS81914/3 and SAE AS81914/4

Features

ƒ Longer lengths than PTFE
ƒ Excellent clarity
Tubing Fluoropolymer ƒ Chemically inert
ƒ Low coefficient of friction
B ƒ Superior dielectric strength
ƒ Good heat resistance
ƒ Self extinguishing
ƒ Non-wetting

Coiled Air Hose & Fittings Applications/Markets Certifications
ƒ SAE AS81914/3
ƒ SAE AS81914/4
ƒ Fluid Handling
C ƒ Harnesses ƒ ASTM D3296-03
ƒ FDA Compliant
ƒ Lab Equipment
ƒ Robotics ƒ USP Class VI Compliant
ƒ VW-1, UL-83 (natural)

Transportation Colors

D Order Information ƒ Natural, Translucent
Example: 81914/3-1001-NT ƒ Colors available as custom run, see color code table

81914/3-1001-NT – SAE AS81914 Convoluted When ordering convoluted tubing in colors, the “N”
81914/3-1001-NT – FEP designation for natural should be replaced by the
81914/3-1001-NT – Helical Convolutions correct color designator;

81914/3-1001-NT – Size (01=0.187") i.e.,81914/3-1001-0T (black bulk tubing)
Fittings 81914/3-1001-NT – Color (N=Natural) i.e.,81914/3-1001-01200 (black tubing - 12 inches long)
E 81914/3-1001-NT – “T” is bulk (for cut tubing remove “T”,
add length, ie. 81914/3-1001-N1200 = 187" Convo, natural, Color Code
cut 12" long) N Natural 5 Green
0 Black 6 Blue
Notes 1 Brown 7 Violet
Red
Gray
2 3 Orange 8 9 White
ƒ Working Temperature: 392°F (200°C)
Tooling, Equipment & Accessories ƒ Stock packaging is random coils 4 Yellow
ƒ Tubing is provided in natural without cuffs direct from
inventory
ƒ Also availabe in close convolution 81914/4
F ƒ Minimum quantities may apply
ƒ Custom packaging, sizes, lengths,cuffs and colors are quoted
upon request

General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
