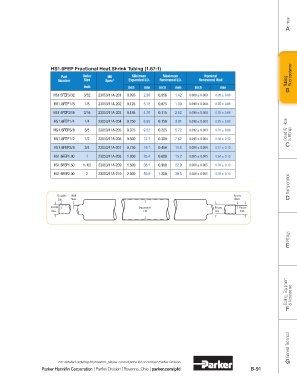

Page 203 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
A

HS1.6FEP Fractional Heat Shrink Tubing (1.67:1)
Part Order Mil Minimum Maximum Nominal Fluoropolymer
Number Size Spec* Expanded I.D. Recovered I.D. Recovered Wall Tubing

inch inch mm inch mm inch mm
B
HS1.6FEP3/32 3/32 23053/11A-201 0.093 2.36 0.056 1.42 0.008 ± 0.003 0.20 ± 0.08
HS1.6FEP1/8 1/8 23053/11A-202 0.125 3.18 0.075 1.90 0.010 ± 0.003 0.25 ± 0.08
HS1.6FEP3/16 3/16 23053/11A-203 0.188 4.78 0.115 2.92 0.010 ± 0.003 0.25 ± 0.08

HS1.6FEP1/4 1/4 23053/11A-204 0.250 6.35 0.150 3.81 0.010 ± 0.003 0.25 ± 0.08
HS1.6FEP3/8 3/8 23053/11A-205 0.375 9.52 0.225 5.72 0.012 ± 0.003 0.31 ± 0.08 Coiled Air Hose & Fittings
HS1.6FEP1/2 1/2 23053/11A-206 0.500 12.7 0.300 7.62 0.015 ± 0.004 0.38 ± 0.10
C
HS1.6FEP3/4 3/4 23053/11A-207 0.750 19.1 0.450 11.4 0.020 ± 0.004 0.51 ± 0.10

HS1.6FEP1.00 1 23053/11A-208 1.000 25.4 0.600 15.2 0.025 ± 0.005 0.64 ± 0.13
HS1.6FEP1.50 1-1/2 23053/11A-209 1.500 38.1 0.900 22.9 0.030 ± 0.005 0.76 ± 0.13
HS1.6FEP2.00 2 23053/11A-210 2.000 50.8 1.200 30.5 0.030 ± 0.005 0.76 ± 0.13
Transportation

Outside Wall Recov. D
Dia. Size Wall
Inside Expanded Recov. Recov.
Dia. I.D. I.D. O.D.

Fittings
E

Tooling, Equipment & Accessories

F

General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
