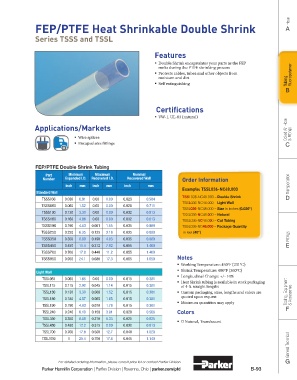

Page 205 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

FEP/PTFE Heat Shrinkable Double Shrink A Hose

Series TSSS and TSSL

Features

ƒ Double Shrink encapsulates your parts as the FEP
melts during the PTFE shrinking process
ƒ Protects cables, tubes and other objects from Fluoropolymer
moisture and dirt
ƒ Self extinguishing Tubing
B

Certifications

ƒ VW-1, UL-83 (natural)
Applications/Markets Coiled Air Hose

ƒ Wire splices & Fittings
ƒ Encapsulates fittings C

FEP/PTFE Double Shrink Tubing
Part Minimum Maximum Nominal
Number Expanded I.D. Recovered I.D. Recovered Wall Order Information
inch mm inch mm inch mm Transportation
Example: TSSL036-NC48.000
Standard Wall
TSSL036-NC48.000 – Double Shrink D
TSSS036 0.036 0.91 0.00 0.00 0.023 0.584
TSSL036-NC48.000 – Light Wall
TSSS060 0.060 1.52 0.00 0.00 0.028 0.711
TSSL036-NC48.000 – Size in inches (0.036")
TSSS130 0.130 3.30 0.00 0.00 0.032 0.813
TSSL036-NC48.000 – Natural
TSSS160 0.160 4.06 0.00 0.00 0.032 0.813 TSSL036-NC48.000 – Cut Tubing
TSSS190 0.190 4.83 0.061 1.55 0.035 0.889 TSSL036-NC48.000 – Package Quantity
TSSS250 0.250 6.35 0.125 3.18 0.035 0.889 in feet (48")
TSSS350 0.350 8.89 0.190 4.83 0.035 0.889 Fittings
TSSS450 0.450 11.4 0.312 7.92 0.055 1.400 E
TSSS700 0.700 17.8 0.440 11.2 0.055 1.400
TSSS950 0.950 24.1 0.680 17.3 0.065 1.650 Notes
ƒ Working Temperature: 450°F (231°C)
Light Wall ƒ Shrink Temperature: 680°F (360°C)
ƒ Longitudinal Change: +/- 10%
TSSL065 0.065 1.65 0.00 0.00 0.015 0.381
ƒ Heat Shrink tubing is available in stock packaging
TSSL115 0.115 2.92 0.045 1.14 0.015 0.381 of 4-ft. straight lengths
TSSL130 0.130 3.30 0.060 1.52 0.015 0.381 ƒ Custom packaging, sizes, lengths and colors are Tooling, Equipment
TSSL180 0.180 4.57 0.065 1.65 0.015 0.381 quoted upon request & Accessories
ƒ Minimum quantities may apply
TSSL190 0.190 4.83 0.070 1.78 0.015 0.381 F
TSSL240 0.240 6.10 0.150 3.81 0.020 0.508 Colors
TSSL350 0.350 8.89 0.210 5.33 0.025 0.635
ƒ Natural, Translucent
TSSL480 0.480 12.2 0.315 8.00 0.032 0.813
TSSL700 0.700 17.8 0.500 12.7 0.040 1.020
General Technical
TSSL1000 1 25.4 0.700 17.8 0.045 1.140

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd B-93
