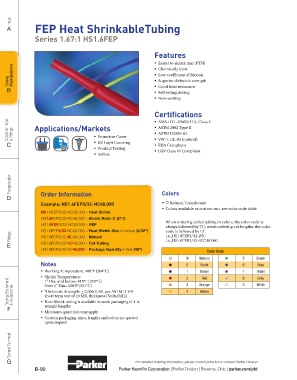

Page 202 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
A FEP Heat ShrinkableTubing

Series 1.67:1 HS1.6FEP

Features

ƒ Easier to shrink than PTFE
ƒ Chemically inert
Tubing Fluoropolymer ƒ Low coefficient of friction
ƒ Superior dielectric strength
B ƒ Good heat resistance
ƒ Self extinguishing
ƒ Non-wetting

Certifications
Coiled Air Hose & Fittings Applications/Markets ƒ AMS-DTL-23053/11A, Class 2
ƒ ASTM 2902 Type II
ƒ ASTM D3296-03
ƒ Protective Cover
C ƒ UV Light Covering ƒ VW-1, UL-83 (natural)
ƒ FDA Compliant
ƒ Product Testing ƒ USP Class VI Compliant
ƒ Rollers

Transportation

D Order Information Colors
Example: HS1.6FEP3/32-NC48.000 ƒ Natural, Translucent
ƒ Colors available as custom run, see color code table
HS1.6FEP3/32-NC48.000 – Heat Shrink
HS1.6FEP3/32-NC48.000 – Shrink Ratio (1.67:1)
When ordering coiled tubing in colors, the color code is
HS1.6FEP3/32-NC48.000 – FEP
always followed by TC; when ordering cut lengths, the color
HS1.6FEP3/32-NC48.000 – Heat Shrink Size in inches (3/32") code is followed by CC
Fittings HS1.6FEP3/32-NC48.000 – Natural i.e.,HS1.6FEP3/32-2TC
i.e.,HS1.6FEP3/32-0CC48.000
E HS1.6FEP3/32-NC48.000 – Cut Tubing
HS1.6FEP3/32-NC48.000 – Package Quantity in feet (48") Color Code
N Natural 5 Green
Notes 0 Black 6 Blue
ƒ Working Temperature: 400°F (204°C) 1 Brown 7 Violet
ƒ Shrink Temperature: 2 Red 8 Gray
Tooling, Equipment & Accessories ƒ *Dielectric Strength: > 2,000 V/M, per ASTM D 149 3 4 Orange 9 White
1" Dia. and below: 410°F (210°C)
Over 1" Dia.: 430°F (221°C)
Yellow
short term test of 10 MIL thickness (Volts/MIL)
straight lengths
F ƒ Heat Shrink tubing is available in stock packaging of 4-ft.
ƒ Minimum quantities may apply
ƒ Custom packaging, sizes, lengths and colors are quoted
upon request

General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
B-90 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
