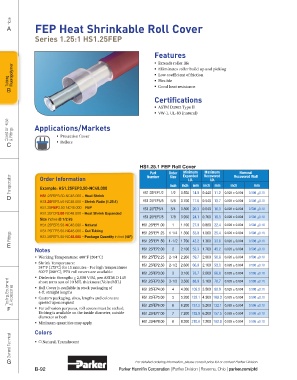

Page 204 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
A FEP Heat Shrinkable Roll Cover

Series 1.25:1 HS1.25FEP

Features

ƒ Extends roller life
ƒ Eliiminates roller build up and picking
Tubing Fluoropolymer ƒ Low coefficient of friction
ƒ Flexible
B ƒ Good heat resistance
Certifications

ƒ ASTM D2902 Type II
ƒ VW-1, UL-83 (natural)
Coiled Air Hose & Fittings Applications/Markets

ƒ Protective Cover
C ƒ Rollers

HS1.25.1 FEP Roll Cover
Minimum
Maximum
Part Order Expanded Recovered Recovered Wall
Nominal
Transportation Example: HS1.25FEP3.50-NC48.000 inch inch I.D. mm inch I.D. mm inch mm
Size
Number
Order Information

D HS1.25FEP3.50-NC48.000 – Heat Shrink HS1.25FEP1/2 1/2 0.550 14.0 0.440 11.2 0.020 ± 0.004 0.508 +0.10
HS1.25FEP3.50-NC48.000 – Shrink Ratio (1.25:1) HS1.25FEP5/8 5/8 0.700 17.8 0.540 13.7 0.020 ± 0.004 0.508 +0.10
HS1.25FEP3.50-NC48.000 – FEP HS1.25FEP3/4 3/4 0.800 20.3 0.640 16.3 0.020 ± 0.004 0.508 +0.10
HS1.25FEP3.50-NC48.000 – Heat Shrink Expanded
HS1.25FEP7/8 7/8 0.950 24.1 0.760 19.3 0.020 ± 0.004 0.508 +0.10
Size inches (3 1/2 in)
HS1.25FEP3.50-NC48.000 – Natural HS1.25FEP1.00 1 1.100 27.9 0.880 22.4 0.020 ± 0.004 0.508 +0.10
HS1.25FEP3.50-NC48.000 – Cut Tubing HS1.25FEP1.25 1 1/4 1.300 33.0 1.000 25.4 0.020 ± 0.004 0.508 +0.10
Fittings HS1.25FEP3.50-NC48.000 – Package Quantity in feet (48")
E HS1.25FEP1.50 1-1/2 1.700 43.2 1.300 33.0 0.020 ± 0.004 0.508 +0.10
Notes HS1.25FEP2.00 2 2.100 53.3 1.700 43.2 0.020 ± 0.004 0.508 +0.10
ƒ Working Temperature: 400°F (204°C) HS1.25FEP2.25 2-1/4 2.260 59.7 2.000 50.8 0.020 ± 0.004 0.508 +0.10
ƒ Shrink Temperature: HS1.25FEP2.50 2-1/2 2.600 66.0 2.100 53.3 0.020 ± 0.004 0.508 +0.10
347°F (175°C) for 10 minutes - For high temperatures
500°F (260°C), PFA roll covers are available HS1.25FEP3.00 3 3.100 78.7 2.600 66.0 0.020 ± 0.004 0.508 +0.10
ƒ Dielectric Strength: > 2,000 V/M, per ASTM D 149 HS1.25FEP3.50 3-1/2 3.500 88.9 3.100 78.7 0.020 ± 0.004 0.508 +0.10
Tooling, Equipment & Accessories ƒ Roll Cover is available in stock packaging of HS1.25FEP4.00 4 5 4.300 109.2 3.500 88.9 0.020 ± 0.004 0.508 +0.10
short term test of 10 MIL thickness (Volts/MIL)
4-ft. straight lengths
HS1.25FEP5.00
5.200 132.1 4.300 109.3 0.020 ± 0.004
0.508 +0.10
ƒ Custom packaging, sizes, lengths and colors are
quoted upon request
F ƒ For adhesion purposes, roll covers must be etched; HS1.25FEP6.00 6 6.200 157.5 5.200 132.1 0.020 ± 0.004 0.508 +0.10
Etching is available on the inside diameter, outside HS1.25FEP7.00 7 7.200 182.9 6.200 157.5 0.020 ± 0.004 0.508 +0.10
diameter or both
ƒ Minimum quantities may apply HS1.25FEP8.00 8 8.300 210.8 7.200 182.9 0.020 ± 0.004 0.508 +0.10
Colors
General Technical ƒ Natural, Translucent

G For detailed ordering information, please consult price list or contact Parflex Division.
