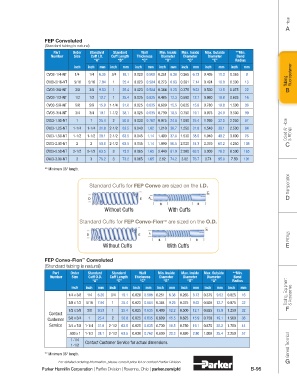

Page 207 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
A

FEP Convoluted
(Standard tubing is natural)
Part Order Standard Standard Wall Min. Inside Max. Inside Max. Outside **Min.
Number Size Cuff I.D. Cuff Length Thickness Diameter Diameter Diameter Bend
“A” “B” “C” “D” “D” “E” Radius

inch inch mm inch mm inch mm inch mm inch mm inch mm inch mm
CV03-1/4-NT 1/4 1/4 6.35 3/4 19.1 0.020 0.508 0.251 6.38 0.265 6.73 0.405 10.3 0.365 9 Fluoropolymer
Tubing
CV03-5/16-NT 5/16 5/16 7.94 1 25.4 0.023 0.584 0.273 6.93 0.281 7.14 0.424 10.8 0.500 13
CV03-3/8-NT 3/8 3/8 9.53 1 25.4 0.023 0.584 0.364 9.25 0.375 9.53 0.530 13.5 0.875 22 B
CV03-1/2-NT 1/2 1/2 12.7 1 25.4 0.025 0.635 0.485 12.3 0.500 12.7 0.660 16.8 0.625 16
CV03-5/8-NT 5/8 5/8 15.9 1-1/4 31.8 0.025 0.635 0.609 15.5 0.625 15.9 0.780 19.8 1.500 38
CV03-3/4-NT 3/4 3/4 19.1 1-1/2 38.1 0.025 0.635 0.730 18.5 0.750 19.1 0.975 24.8 3.500 89
CV03-1.00-NT 1 1 25.4 2 50.8 0.030 0.762 0.975 24.8 1.000 25.4 1.260 32.0 2.250 57
CV03-1.25-NT 1-1/4 1-1/4 31.8 2-1/2 63.5 0.040 1.02 1.210 30.7 1.250 31.8 1.540 39.1 2.500 64 Coiled Air Hose
CV03-1.50-NT 1-1/2 1-1/2 38.1 2-1/2 63.5 0.045 1.14 1.490 37.8 1.530 38.9 1.940 49.2 3.000 76 & Fittings
CV03-2.00-NT 2 2 50.8 2-1/2 63.5 0.045 1.14 1.990 50.5 2.020 51.3 2.370 60.2 4.250 108 C
CV03-2.50-NT 2-1/2 2-1/2 63.5 3 73.2 0.065 1.65 2.440 61.9 2.500 63.5 3.000 76.2 6.500 165
CV03-3.00-NT 3 3 76.2 3 73.2 0.065 1.65 2.92 74.2 3.02 76.7 3.74 95.0 7.50 191

** Minimum 36" length.
Transportation
Standard Cuffs for FEP Convo are sized on the I.D.

D

Without Cuffs With Cuffs

Standard Cuffs for FEP Convo-Flon™ are sized on the O.D.

A
Fittings
Without Cuffs With Cuffs E

FEP Convo-Flon Convoluted
™
(Standard tubing is natural)
Part Order Standard Standard Wall Min. Inside Max. Inside Max. Outside **Min.
Number Size Cuff O.D. Cuff Length Thickness Diameter Diameter Diameter Bend
“A” “E” “C” “B” “B” “A” Radius

inch inch mm inch mm inch mm inch mm inch mm inch mm inch mm
1/4 x 3/8 1/4 6.35 3/4 19.1 0.020 0.508 0.251 6.38 0.265 6.73 0.375 9.53 0.625 16 Tooling, Equipment & Accessories
3/8 x 1/2 5/16 7.94 1 25.4 0.023 0.584 0.364 9.25 0.375 9.53 0.500 12.7 0.875 22
1/2 x 5/8 3/8 9.53 1 25.4 0.025 0.635 0.480 12.2 0.500 12.7 0.625 15.9 1.250 32 F
Contact
Customer 5/8 x 3/4 1 25.4 2 50.8 0.025 0.635 0.609 15.5 0.625 15.9 0.750 19.1 1.500 38
Service 3/4 x 7/8 1-1/4 31.8 2-1/2 63.5 0.025 0.635 0.730 18.5 0.750 19.1 0.875 22.2 1.750 44
.800 x 1 1-1/2 38.1 2-1/2 63.5 0.030 0.762 0.800 20.3 0.820 2.80 1.000 25.4 2.250 57
1-1/4 Contact Customer Service for actual dimensions.
1-1/2 General Technical

** Minimum 36" length.

For detailed ordering information, please consult price list or contact Parflex Division. G
