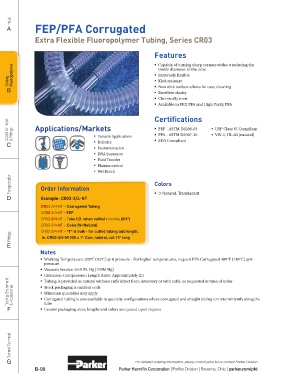

Page 210 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
A FEP/PFA Corrugated

Extra Flexible Fluoropolymer Tubing, Series CR03

Features

ƒ Capable of turning sharp corners without reducing the
inside diameter of the tube
Tubing Fluoropolymer ƒ Extremely flexible
ƒ Kink resistant
B ƒ Non stick surface allows for easy cleaning
ƒ Excellent clarity
ƒ Chemically inert
ƒ Available in FEP, PFA and High Purity PFA

Coiled Air Hose & Fittings Applications/Markets Certifications ƒ USP Class VI Compliant

ƒ FEP - ASTM D3296-03
ƒ VW-1, UL-83 (natural)
ƒ PFA - ASTM D3307-10
ƒ Vacuum Applications
C ƒ Robotics ƒ FDA Compliant
ƒ Instrumentation
ƒ DNA Sequencer
ƒ Fluid Transfer
ƒ Pharmaceutical
ƒ Wet Bench
Transportation Order Information Colors

D Example: CR03-3/4-NT ƒ Natural, Translucent
CR03-3/4-NT – Corrugated Tubing
CR03-3/4-NT – FEP
CR03-3/4-NT – Tube I.D. when cuffed in inches (3/4")
CR03-3/4-NT – Color (N=Natural)
CR03-3/4-NT – “T” is bulk - for cuffed tubing add length,
Fittings ie. CR03-3/4-N1200 = 1" Corr, natural, cut 12" long
E
Notes
ƒ Working Temperature: 200°F (93°C) @ 0 pressure - For higher temperatures, request PFA Corrugated 300°F (148°C) @ 0
pressure
ƒ Vacuum Service: 29.9 IN. Hg (759M Hg)
ƒ Extension-Compression Length Ratio: Approximately 2:1
Tooling, Equipment & Accessories ƒ Stock packaging is random coils
ƒ Tubing is provided in natural without cuffs direct from inventory or with cuffs, as requested at time of order

ƒ Minimum quantities may apply
ƒ Corrugated tubing is also available in specialty configurations where corrugated and straight tubing run intermittently along the
tube
F ƒ Custom packaging, sizes, lengths and colors are quoted upon request

General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
