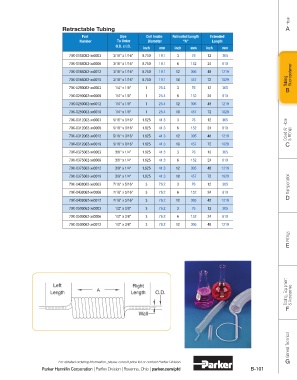

Page 213 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
Retractable Tubing A

Part Size Coil Inside Retracted Length Extended
Number To Order Diameter “A” Length
O.D. x I.D. inch mm inch mm inch mm

70X-0188062-xx0003 3/16" x 1/16" 0.750 19.1 3 76 12 305
70X-0188062-xx0006 3/16" x 1/16" 0.750 19.1 6 152 24 610
70X-0188062-xx0012 3/16" x 1/16" 0.750 19.1 12 305 48 1219 Fluoropolymer
Tubing
70X-0188062-xx0018 3/16" x 1/16" 0.750 19.1 18 457 72 1829
70X-0250062-xx0003 1/4" x 1/8" 1 25.4 3 76 12 305
B
70X-0250062-xx0006 1/4" x 1/8" 1 25.4 6 152 24 610
70X-0250062-xx0012 1/4" x 1/8" 1 25.4 12 305 48 1219
70X-0250062-xx0018 1/4" x 1/8" 1 25.4 18 457 72 1829
70X-0312062-xx0003 5/16" x 3/16" 1.625 41.3 3 76 12 305
70X-0312062-xx0006 5/16" x 3/16" 1.625 41.3 6 152 24 610 Coiled Air Hose
70X-0312062-xx0012 5/16" x 3/16" 1.625 41.3 12 305 48 1219 & Fittings
70X-0312062-xx0018 5/16" x 3/16" 1.625 41.3 18 457 72 1829 C
70X-0375062-xx0003 3/8" x 1/4" 1.625 41.3 3 76 12 305

70X-0375062-xx0006 3/8" x 1/4" 1.625 41.3 6 152 24 610
70X-0375062-xx0012 3/8" x 1/4" 1.625 41.3 12 305 48 1219
70X-0375062-xx0018 3/8" x 1/4" 1.625 41.3 18 457 72 1829
70X-0438062-xx0003 7/16" x 5/16" 3 76.2 3 76 12 305 Transportation
70X-0438062-xx0006 7/16" x 5/16" 3 76.2 6 152 24 610
D
70X-0438062-xx0012 7/16" x 5/16" 3 76.2 12 305 48 1219
70X-0500062-xx0003 1/2" x 3/8" 3 76.2 3 76 12 305
70X-0500062-xx0006 1/2" x 3/8" 3 76.2 6 152 24 610
70X-0500062-xx0012 1/2" x 3/8" 3 76.2 12 305 48 1219

Fittings
E

Tooling, Equipment & Accessories

F

General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
