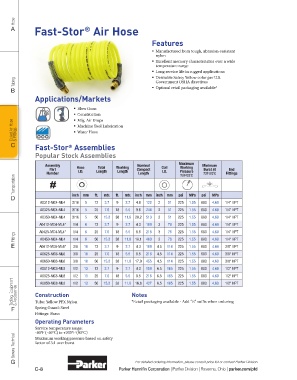

Page 228 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
®
A Fast-Stor Air Hose

Features

ƒ Manufactured from tough, abrasion-resistant
nylon
ƒ Excellent memory characteristics over a wide
temperature range
ƒ Long service life in rugged applications
ƒ Desirable Safety Yellow color per U.S.
Tubing Government OSHA directives
B ƒ Optimal retail packaging available*
Applications/Markets

ƒ Blow Guns
ƒ Construction
ƒ Mfg. Air Drops
Coiled Air Hose & Fittings ƒ Machine Tool Lubrication
ƒ Water Hose

C Fast-Stor Assemblies
®
Popular Stock Assemblies

Assembly Hose Total Working Nominal Coil Maximum Minimum
Working
Part Compact Burst at End
Number I.D. Length Length Length I.D. Pressure 73˚F/23˚C Fittings
73˚F/23˚C
Transportation

D inch mm ft. mtr. ft. mtr. inch mm inch mm psi MPa psi MPa
A0312-MC4-ML4 3/16 5 12 3.7 9 2.7 4.8 122 2 51 225 1.55 680 4.69 1/4" NPT
A0325-MC4-ML4 3/16 5 25 7.6 18 5.5 9.6 244 2 51 225 1.55 680 4.69 1/4" NPT
A0350-MC4-ML4 3/16 5 50 15.2 38 11.6 20.2 513 2 51 225 1.55 680 4.69 1/4" NPT
A0412-MC4-ML4* 1/4 6 12 3.7 9 2.7 4.3 109 3 76 225 1.55 680 4.69 1/4" NPT
A0425-MC4-ML4* 1/4 6 25 7.6 18 5.5 8.6 218 3 76 225 1.55 680 4.69 1/4" NPT
Fittings A0450-MC4-ML4 1/4 6 50 15.2 38 11.6 18.1 460 3 76 225 1.55 680 4.69 1/4" NPT
E A0612-MC6-ML6* 3/8 10 12 3.7 9 2.7 4.3 109 4.5 114 225 1.55 680 4.69 3/8" NPT

A0625-MC6-ML6 3/8 10 25 7.6 18 5.5 8.5 216 4.5 114 225 1.55 680 4.69 3/8" NPT
A0650-MC6-ML6 3/8 10 50 15.2 38 11.6 17.9 455 4.5 114 225 1.55 680 4.69 3/8" NPT
A0812-MC8-ML8 1/2 13 12 3.7 9 2.7 4.3 109 6.5 165 225 1.55 680 4.69 1/2" NPT
7.6
8.5
A0825-MC8-ML8 1/2 13 25 15.2 18 11.6 16.8 216 6.5 165 225 1.55 680 4.69 1/2" NPT
5.5
Tooling, Equipment & Accessories Construction Notes
1.55
680
4.69
1/2" NPT
6.5
165
225
1/2
A0850-MC8-ML8
13
427
38
50
Spring Guard: Steel
F Tube: Yellow PFX Nylon *Retail packaging available - Add “R” suffix when ordering
Fittings: Brass
Operating Parameters
Service temperature range:
-40°F (-40°C) to +200°F (93°C)
General Technical factor of 3:1 over burst
Maximum working pressure based on safety
G For detailed ordering information, please consult price list or contact Parflex Division.
C-8 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
