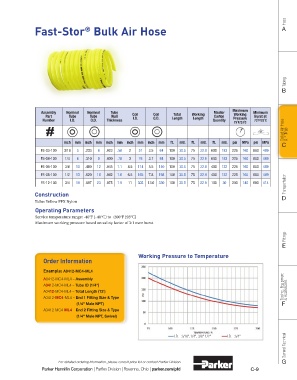

Page 229 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
Fast-Stor Bulk Air Hose A
®

Tubing
B

Maximum
Assembly Nominal Nominal Tube Coil Coil Total Working Master Working Minimum
Part Tube Tube Wall Carton Burst at
Coiled Air Hose & Fittings
Number I.D. O.D. Thickness I.D. O.D. Length Length Quantity Pressure 73˚F/23˚C
73˚F/23˚C

inch mm inch mm inch mm inch mm inch mm ft. mtr. ft. mtr. ft. mtr. psi MPa psi MPa
C
FS-03-100 3/16 5 .233 6 .023 .58 2 51 2.5 64 100 30.5 75 22.9 600 183 225 160 680 469
FS-04-100 1/4 6 .310 8 .030 .76 3 76 3.7 94 100 30.5 75 22.9 600 183 225 160 680 469
FS-06-100 3/8 10 .460 12 .045 1.1 4.5 114 5.5 140 100 30.5 75 22.9 400 122 225 160 680 469
FS-08-100 1/2 13 .620 16 .062 1.6 6.5 165 7.8 198 100 30.5 75 22.9 400 122 225 160 680 469
FS-12-100 3/4 19 .897 23 .075 1.9 11 305 13.0 330 100 30.5 75 22.9 100 30 200 140 600 414 Transportation

Construction
Tube: Yellow PFX Nylon D
Operating Parameters
Service temperature range: -40°F (-40°C) to +200°F (93°C)
Maximum working pressure based on safety factor of 3:1 over burst

Fittings
E

Working Pressure to Temperature
Order Information

Example: A0412-MC4-ML4
A0412-MC4-ML4 – Assembly
A0412-MC4-ML4 – Tube ID (1/4") Tooling, Equipment
A0412-MC4-ML4 – Total Length (12') & Accessories
A0412-MC4-ML4 – End 1 Fitting Size & Type
(1/4" Male NPT) F
A0412-MC4-ML4 – End 2 Fitting Size & Type
(1/4" Male NPT, Swivel)

General Technical
I.D. - 3/16",1/4", 3/8" 1/2" I.D. - 3/4"

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd C-9
