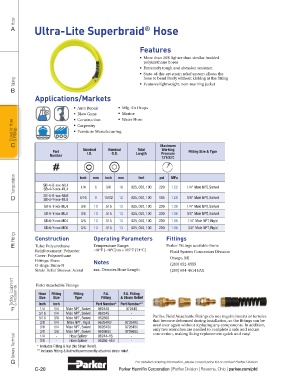

Page 240 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
®
A Ultra-Lite Superbraid Hose

Features

ƒ More than 20% lighter than similar braided
polyurethane hoses
ƒ Extremely tough and abrasion resistant
ƒ State-of-the-art strain relief system allows the
hose to bend freely without kinking at the fitting
Tubing ƒ Features lightweight, non-marring jacket
B
Applications/Markets

ƒ Auto Repair ƒ Mfg. Air Drops
ƒ Blow Guns ƒ Marine
ƒ Water Hose
ƒ Construction
Coiled Air Hose & Fittings ƒ Carpentry
ƒ Furniture Manufacturing

C Maximum
Part Nominal Nominal Total Working Fitting Size & Type
Number I.D. O.D. Length Pressure
73˚F/23˚C

Transportation SB-4-B-xxx-ML4 inch mm inch mm 025, 050, 100 220 MPa 1/4" Male NPT, Swivel
psi
feet
3/8
1.52
6
10
1/4
SB-4-Y-xxx-ML4
D SB-5-B-xxx-ML6 5/16 8 15/32 12 025, 050, 100 185 1.28 3/8" Male NPT, Swivel
SB-5-Y-xxx-ML6
SB-6-Y-xxx-ML4 3/8 10 .515 13 025, 050, 100 200 1.38 1/4" Male NPT, Swivel
SB-6-Y-xxx-ML6 3/8 10 .515 13 025, 050, 100 200 1.38 3/8" Male NPT, Swivel
SB-6-Y-xxx-MC4 3/8 10 .515 13 025, 050, 100 200 1.38 1/4" Male NPT, Rigid
SB-6-Y-xxx-MC6 3/8 10 .515 13 025, 050, 100 200 1.38 3/8" Male NPT, Rigid
Fittings Construction Operating Parameters Fittings
E Tube: Polyurethane Temperature Range: Parker Fittings available from:
Reinforcement: Polyester -40°F (-40°C) to +165°F (74°C) Fluid System Connectors Division
Cover: Polyurethane Otsego, MI
Fittings: Brass Notes
O-rings: Buna-N (269) 692-6555
Strain Relief Sleeves: Acetal xxx- Denotes Hose Length (269) 694-4614 FAX

Tooling, Equipment & Accessories Field Attachable Fittings Fitting & Strain Relief

Hose
F.A.
Fitting
F.A. Fitting
Fitting
Size
Size
Type
F Inch Inch Male NPT, Swivel Part Number* Part Number**
07244S
06244S
1/4
1/4
5/16 1/4 Male NPT, Swivel 06254S -
5/16 3/8 Male NPT, Swivel 06256S - Parflex Field Attachable Fittings do not require inserts or ferrules
3/8 1/4 Male NPT, Rigid 06264RU 07264RU that become deformed during installation, so the fittings can be
3/8 1/4 Male NPT, Swivel 06264SU 07264SU used over again without replacing any components. In addition,
3/8 3/8 Male NPT, Swivel 06266SU 07266SU only two wrenches are needed to complete a safe and secure
connection, making fitting replacement quick and easy!
General Technical * Includes Fitting & Nut (No Strain Relief). 06266-HSU -
Hose Splicer
-
1/4
06244-HS
-
3/8
-
Hose Splicer
** Includes Fitting & Nut with permanently attached strain relief.
G For detailed ordering information, please consult price list or contact Parflex Division.
C-20 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
