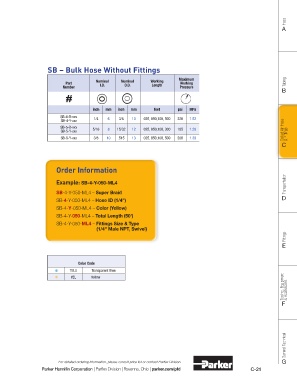

Page 241 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
A

SB – Bulk Hose Without Fittings

Part Nominal Nominal Working Maximum Tubing
Working
Number I.D. O.D. Length Pressure
B

inch mm inch mm feet psi MPa
SB-4-B-xxx 1/4 6 3/8 10 025, 050,100, 500 220 1.52
SB-4-Y-xxx
SB-5-B-xxx 5/16 8 15/32 12 025, 050,100, 300 185 1.28
SB-5-Y-xxx Coiled Air Hose
SB-6-Y-xxx 3/8 10 .515 13 025, 050,100, 500 200 1.38 & Fittings
C

Order Information

Example: SB-4-Y-050-ML4 Transportation

SB-4-Y-050-ML4 – Super Braid
SB-4-Y-050-ML4 – Hose ID (1/4") D
SB-4-Y-050-ML4 – Color (Yellow)
SB-4-Y-050-ML4 – Total Length (50')
SB-4-Y-050-ML4 – Fittings Size & Type
(1/4" Male NPT, Swivel)
Fittings
E

Color Code
TBLU Transparent Blue
Tooling, Equipment & Accessories
YEL Yellow

F

General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd C-21
