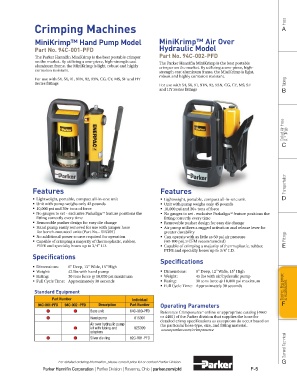

Page 329 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Crimping Machines A Hose

MiniKrimp™ Hand Pump Model MiniKrimp™ Air Over
Part No. 94C-001-PFD Hydraulic Model
The Parker Hannifin MiniKrimp is the best portable crimper Part No. 94C-002-PFD
on the market. By utilizing a one-piece, high-strength cast The Parker Hannifin MiniKrimp is the best portable
aluminum frame, the MiniKrimp is light, robust and highly crimper on the market. By utilizing a one-piece, high-
corrosion resistant. strength cast aluminum frame, the MiniKrimp is light,
robust and highly corrosion resistant.
For use with 54, 56, 91, 91N, 92, 93N, CG, CY, MS, SF and HY
Series fittings For use with 54, 56, 91, 91N, 92, 93N, CG, CY, MS, SF Tubing
and HY Series fittings B

Coiled Air Hose & Fittings

C

Transportation

Features Features

ƒ Lightweight, portable, compact all-in-one unit ƒ Lightweight, portable, compact all-in-one unit D
ƒ Unit with pump weighs only 42 pounds ƒ Unit with pump weighs only 45 pounds
ƒ 10,000 psi and 30+ tons of force ƒ 10,000 psi and 30+ tons of force
ƒ No gauges to set - exclusive Parkalign ™ feature positions the ƒ No gauges to set - exclusive Parkalign ™ feature positions the
fitting correctly every time fitting correctly every time
ƒ Removable pusher design for easy die change ƒ Removable pusher design for easy die change
ƒ Hand pump easily removed for use with jumper hose ƒ Air pump utilizes a rugged activation and release lever for
for bench-mounted units (Part No.– 015309) greater durability
ƒ No additional power source required for operation ƒ Can operate with as little as 60 psi air pressure Fittings
ƒ Capable of crimping a majority of thermoplastic, rubber, (60-100 psi, 9 CFM recommended)
PTFE and specialty hoses up to 3/4" I.D. ƒ Capable of crimping a majority of thermoplastic, rubber, E
PTFE and specialty hoses up to 3/4" I.D.
Specifications
Specifications
ƒ Dimensions: 6" Deep, 13" Wide, 15" High
ƒ Weight: 42 lbs with hand pump ƒ Dimensions: 6" Deep, 12" Wide, 15" High
ƒ Rating: 30 tons force @ 10,000 psi maximum ƒ Weight: 45 lbs with air/hydraulic pump
ƒ Full Cycle Time: Approximately 30 seconds ƒ Rating: 30 tons force @ 10,000 psi maximum
ƒ Full Cycle Time: Approximately 30 seconds Tooling, Equipment
Standard Equipment & Accessories
Part Number Individual
94C-001-PFD 94C-002 -PFD Description Part Number Operating Parameters F
Ä Ä Base unit 94C-080-PFD Reference Crimpsource™ online or appropriate catalog (4660
Ä Hand pump 015301 or 4400) of the Parker division that supplies the hose for
detailed crimp specifications as exceptions do occur based on
Air over hydraulic pump the particular hose type, size, and fitting material.
Ä kit with tubing and 025399 www.parker.com/crimpsource
adapters
General Technical
Ä Ä Silver die ring 82C-R01-PFD

For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd F-5
