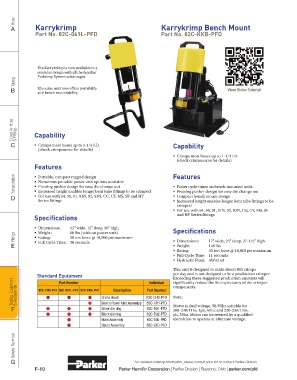

A Karrykrimp Karrykrimp Bench Mount
Part No. 82C-061L-PFD Part No. 82C-KKB-PFD

The Karrykrimp is now available in a
modular design with all the familiar
Parkrimp System advantages.
Tubing
B The same unit now offers portability View Video Tutorial
and bench mountability.

Coiled Air Hose & Fittings Capability

C ƒ Crimps most hoses up to 1-1/4 I.D. Capability
(check crimpsource for details)
ƒ Crimps most hoses up to 1-1/4 I.D.
(check crimpsource for details)
Features

Transportation ƒ Portable, compact rugged design Features
ƒ Numerous portable power unit options available
ƒ Pivoting pusher design for easy die change out
ƒ Faster cycle times on bench mounted units
ƒ For use with 54, 56, 91, 91N, 92, 93N, CG, CY, MS, SF and HY
ƒ Compact bench mount design
D ƒ Increased height enables longer bent tube fittings to be crimped ƒ Pivoting pusher design for easy die change out
Series fittings
ƒ Increased height enables longer bent tube fittings to be
crimped
ƒ For use with 54, 56, 91, 91N, 92, 93N, CG, CY, MS, SF
Specifications and HY Series fittings
ƒ Dimensions: 15" wide, 12" deep, 30" high Specifications
Fittings ƒ Weight: 60 lbs (without power unit) ƒ Dimensions: 17" wide, 23" deep, 27-1/2" high
30 ton force @ 10,000 psi maximum
ƒ Rating:
E ƒ Full Cycle Time: 30 seconds ƒ Weight: 146 lbs
ƒ Rating: 30 ton force @ 10,000 psi maximum
ƒ Full Cycle Time: 11 seconds
ƒ Hydraulic Fluid: AW32 oil

This unit is designed to make about 400 crimps
Standard Equipment Individual per day and is not designed to be a production crimper.
Exceeding these suggested production amounts will
Tooling, Equipment & Accessories 82C-CHD-PFD 82C-061L-PFD 82C-KKB-PFD Crimp Head 82C-CHD-PFD components.
Part Number
significantly reduce the life expectancy of the crimper
Part Number
Description
Note:
Ä
Ä
Ä
F Ä Ä Ä Bench Power Unit Assembly 85C-1PH-PFD Motor is dual voltage, 50/60hz suitable for
Silver die ring
82C-R01-PFD
Ä
208-230/115v, 1ph, 60hz and 220-230/110v,
Ä Ä Ä Black die ring 82C-R02-PFD ph, 50hz. Motor can be rewired by a qualified
Ä Hose Assembly 85C-00L-PFD electrician to operate at alternate voltage.
Ä Stand Assembly 85C-STD-PFD
General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
