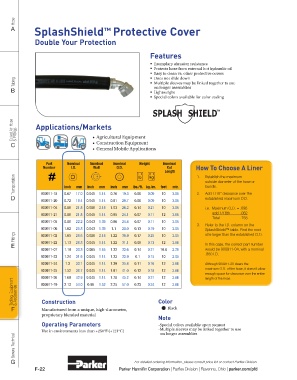

Page 346 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
A SplashShield Protective Cover
™

Double Your Protection

Features

ƒ Exemplary abrasion resistance
ƒ Protects hose from external hot hydraulic oil
ƒ Easy to clean vs. other protective covers
Tubing ƒ Does not slide down
ƒ Multiple sleeves may be linked together to use
on longer assemblies
B ƒ Lightweight
ƒ Special colors available for color coding

SPLASH SHIELD TM
Coiled Air Hose & Fittings Applications/Markets

• Agricultural Equipment
C • Construction Equipment
• General Mobile Applications

Part Nominal Nominal Nominal Weight Nominal
Number I.D. Wall O.D. Cut How To Choose A Liner
Length 1. Establish the maximum
Transportation inch mm inch mm inch mm lbs./ft. kg./m. feet mtr. outside diameter of the hose or
kg
lb
bundle.
D 900911-18 0.67 17.0 0.045 1.14 0.76 19.3 0.06 0.09 10 3.05 2. Add 1/16” clearance over the
established maximum O.D.
3.05
0.81
0.045
1.14
0.09
900911-20
0.06
20.7
10
0.72
18.4

900911-04 0.86 21.8 0.086 2.18 1.03 26.2 0.14 0.21 10 3.05 i.e. Maximum O.D. = .696
900911-21 0.86 21.8 0.045 1.14 0.95 24.1 0.07 0.11 12 3.66 add 1/16th .062
Total .758
900911-05 0.88 22.2 0.043 1.09 0.96 24.4 0.07 0.11 10 3.05
3. Refer to the I.D. column on the
900911-06 1.02 25.8 0.043 1.09 1.1 28.0 0.13 0.19 10 3.05 SplashShield™ table. Find the next
Fittings 900911-02 1.05 26.6 0.086 2.18 1.22 30.9 0.17 0.25 10 3.05 size larger than the established O.D.

E 900911-22 1.13 28.8 0.045 1.14 1.22 31.1 0.09 0.13 12 3.66 In this case, the correct part number
900911-07 1.19 30.3 0.065 1.65 1.32 33.6 0.14 0.21 10.8 3.29 would be 900911-04, with a nominal
.860 I.D.
900911-23 1.24 31.6 0.045 1.14 1.33 33.9 0.1 0.15 10 3.05
900911-24 1.3 33.1 0.045 1.14 1.39 35.4 0.11 0.16 12 3.66 Although 900911-20 clears the
900911-25 1.52 38.7 0.045 1.14 1.61 41.0 0.12 0.18 12 3.66 maximum O.D. of the hose, it doesn’t allow
enough space for clearance over the entire
900911-26 1.69 42.9 0.045 1.14 1.78 45.2 0.14 0.21 12 3.66 length of the hose.
Tooling, Equipment & Accessories
12
3.66
1.52
2.25
57.0
2.13
54.0
0.06
900911-19
0.23
0.34
F Construction Color
Black
Manufactured from a unique, high-durometer,
proprietary blended material
Note
Operating Parameters -Special colors available upon request
Use in environments less than +250°F (+121°C) -Multiple sleeves may be linked together to use
on longer assemblies
General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
F-22 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
