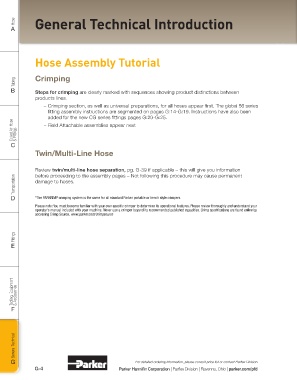

Page 350 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose General Technical Introduction
A

Hose Assembly Tutorial

Tubing Crimping

B Steps for crimping are clearly marked with sequences showing product distinctions between
products lines.
– Crimping section, as well as universal preparations, for all hoses appear first. The global 56 series
fitting assembly instructions are segmented on pages G:14-G:19. Instructions have also been
added for the new CG series fittings pages G:20-G:25.
Coiled Air Hose & Fittings – Field Attachable assemblies appear next

C
Twin/Multi-Line Hose

Review twin/multi-line hose separation, pg. G-39 if applicable – this will give you information
before proceeding to the assembly pages – Not following this procedure may cause permanent
Transportation damage to hoses.

D *The PARKRIMP crimping system is the same for all standard Parker portable or bench style crimpers.

Please note: You must become familiar with your own specific crimper to determine its operational features. Please review thoroughly and understand your
operator’s manual included with your machine. Never use a crimper beyond its recommended published capacities. Crimp specifications are found online by
accessing Crimp Source. www.parker.com/crimpsource

Fittings
E

Tooling, Equipment & Accessories

F

General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
G-4 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
