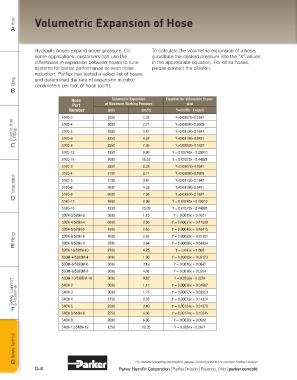

Hose Volumetric Expansion of Hose
A

Hydraulic hoses expand under pressure. On To calculate the volumetric expansion of a hose,
some applications, customers can use the substitute the desired pressure into the “X” values
differences in expansion between hoses to tune in the appropriate equation. For other hoses,
systems for better performance or even noise please contact the division.
reduction. Parflex has tested a select list of hoses
Tubing and determined the rate of expansion in cubic
centimeters per foot of hose (cc/ft).
B

Hose Volumetric Expansion Equation for Volumetric Expan-
Part at Maximum Working Pressure sion
Number (psi) (cc/ft) Y=(cc/ft) X=(psi)
510C-3 3250 2.33 Y=0.0007X+0.0581
Coiled Air Hose & Fittings 510C-4 3000 2.71 Y=0.0009X+0.0059
Y=0.0013X+0.1647
510C-5
2500
3.41
C 510C-6 2250 4.32 Y=0.0019X+0.0471
510C-8
2250
Y=0.0032X+0.1637
7.36
510C-12 1250 8.99 Y = 0.00745x - 0.29910
510C-16 1000 15.33 Y = 0.01573x - 0.44928
518C-3 3250 2.33 Y=0.0007X+0.0581
518C-4 3150 2.71 Y=0.0009X+0.0059
Transportation 518C-5 3150 3.41 Y=0.0013X+0.1647
3000
Y=0.0019X+0.0471
518C-6
4.32
D 518C-8 3000 7.36 Y=0.0032X+0.1637
518C-12 1660 8.99 Y = 0.00745x - 0.29910
518C-16 1330 15.33 Y = 0.01573x - 0.44928
520N-3/528N-3 5000 1.13 Y = 0.0002x + 0.1621
520N-4/528N-4 5000 2.05 Y = 0.00031x + 0.47589
520N-5/528N-5 4500 2.63 Y = 0.00048x + 0.48415
Fittings 520N-6/528N-6 4000 2.87 Y = 0.00053x + 0.75151
E 520N-8/528N-8 3500 3.64 Y = 0.00086x + 0.64994
520N-10/528N-10 2750 4.25 Y = 0.001x + 1.505
53DM-4/538DM-4 3000 1.90 Y = 0.00062x + 0.02373
53DM-6/538DM-6 3000 3.19 Y = 0.0010x + 0.0647
53DM-8/538DM-8 3000 4.68 Y = 0.0016x + 0.0384
53DM-10/538DM-10
3000
Y = 0.0033x - 0.2254
9.82
Tooling, Equipment & Accessories 540N-2 3000 1.11 Y = 0.00036x + 0.04607
Y = 0.00057x + 0.03059
1.75
3000
540N-3
2.33
Y = 0.00079x + 0.14354
540N-4
2750
F 540N-5 2500 3.46 Y = 0.00124x + 0.31870
540N-6/548N-6 2250 4.06 Y = 0.00174x + 0.15045
540N-8 2000 6.05 Y = 0.0030x + 0.0928
540N-12/548N-12 1250 10.26 Y = 0.0081x - 0.2671
General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
