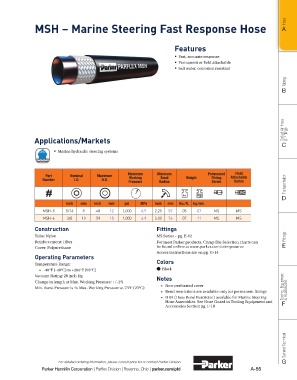

MSH – Marine Steering Fast Response Hose A Hose
Features
Fast, accurate response
Permanent or field attachable
Salt water, corrosion resistant
Tubing
B
Coiled Air Hose
Applications/Markets & Fittings
C
Marine hydraulic steering systems
Field
Part Nominal Maximum Maximum Minimum Permanent Attachable
Transportation
Bend
Working
Number I.D. O.D. Pressure Radius Weight Fitting Series
Series
lbs
D
inch mm inch mm psi MPa inch mm lbs./ft. kg./mtr.
MSH-5 5/16 8 .48 12 1,000 6.9 2.25 57 .05 .07 MS MS
MSH-6 3/8 10 .59 15 1,000 6.9 3.00 76 .07 .11 MS MS
Construction Fittings
Tube: Nylon MS Series – pg. E-62 Fittings
Reinforcement: Fiber For most Parker products, Crimp Die Selection charts can
Cover: Polyurethane be found online at www.parker.com/crimpsource E
Access instructions are on pg. G-14
Operating Parameters
Temperature Range: Colors
• -40°F (-40°C) to +200°F (93°C) Black
Vacuum Rating: 28 inch Hg Notes
Change in length at Max. Working Pressure: +/-2%
• Non-perforated cover Tooling, Equipment
Min. Burst Pressure is 4x Max. Working Pressure at 73°F (23°C)
• Bend restrictions are available only for permanent fittings & Accessories
• HBR (Hose Bend Restrictor) available for Marine Steering
Hose Assemblies. See Hose Guard in Tooling Equipment and F
Accessories Section pg. F-18
General Technical
For detailed ordering information, please consult price list or contact Parflex Division. G
Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd A-55
