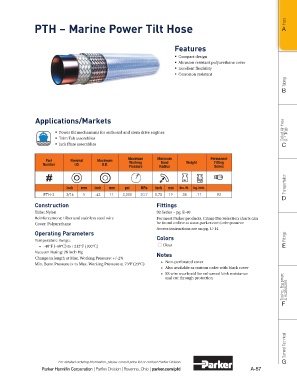

PTH – Marine Power Tilt Hose A Hose

Features

ƒ Compact design
ƒ Abrasion resistant polyurethane cover
ƒ Excellent flexibility
ƒ Corrosion resistant
Tubing
B

Applications/Markets

ƒ Power tilt mechanisms for outboard and stern drive engines Coiled Air Hose & Fittings
ƒ Trim Tab assemblies
ƒ Jack Plate assemblies C

Maximum Minimum Permanent
Part Nominal Maximum
Number I.D. O.D. Working Bend Weight Fitting
Pressure Radius Series
Transportation
lbs
inch mm inch mm psi MPa inch mm lbs./ft. kg./mtr.
PTH-3 3/16 5 .43 11 3,000 20.7 0.75 19 .08 .11 92
D
Construction Fittings
Tube: Nylon 92 Series – pg. E-40
Reinforcement: Fiber and stainless steel wire For most Parker products, Crimp Die Selection charts can
Cover: Polyurethane be found online at www.parker.com/crimpsource
Access instructions are on pg. G-14
Operating Parameters
Temperature Range: Colors Fittings
• -40°F (-40°C) to +212°F (100°C) Clear E
Vacuum Rating: 28 inch Hg Notes
Change in length at Max. Working Pressure: +/-2%
• Non-perforated cover
Min. Burst Pressure is 4x Max. Working Pressure at 73°F (23°C)
• Also available as custom order with black cover
• SS wire overbraid for enhanced kink resistance
Tooling, Equipment & Accessories
and cut through protection

F

General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
