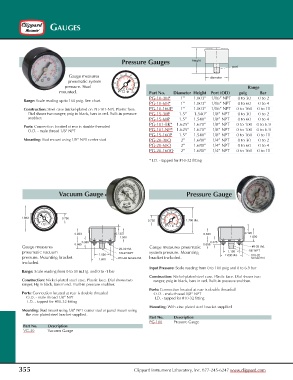

Page 14 - Clippard - Air Preparation Equipment

GAUGES
®

Pressure Gauges height
port
50 60
Gauge measures diameter
40
30 3 4 70
pneumatic system 20 2 5 80
pressure. Stud 1 kg /cm 2 6 Range
10
0 PSIG 7 90
mounted. 0 100 Part No. Diameter Height Port (OD) psig Bar
PG-10-30J* 1” 1.003” 1/16” NPT 0 to 30 0 to 2
Range: Scale reading up to 160 psig. See chart.
PG-10-60J* 1” 1.003” 1/16” NPT 0 to 60 0 to 4
Construction: Steel case (nickel-plated on PG-101-NP). Plastic face. PG-10-160J* 1” 1.003” 1/16” NPT 0 to 160 0 to 11
Dial shows two ranges; psig in black, bars in red. Built-in pressure PG-15-30P 1.5” 1.540” 1/8” NPT 0 to 30 0 to 2
snubber. PG-15-60P 1.5” 1.540” 1/8” NPT 0 to 60 0 to 4
PG-101-BK* 1.625” 1.670” 1/8” NPT 0 to 100 0 to 6.9
Ports: Connection located at rear is double threaded
O.D. - male thread 1/8” NPT PG-101-NP* 1.625” 1.670” 1/8” NPT 0 to 100 0 to 6.9
PG-15-160P 1.5” 1.540” 1/8” NPT 0 to 160 0 to 11
Mounting: Stud mount using 1/8” NPT center stud PG-20-30Q 2” 1.680” 1/4” NPT 0 to 30 0 to 2
PG-20-60Q 2” 1.680” 1/4” NPT 0 to 60 0 to 4
PG-20-160Q 2” 1.680” 1/4” NPT 0 to 160 0 to 11
* I.D. - tapped for #10-32 fitting

Vacuum Gauge Pressure Gauge

-15
-20 -10 40 50 60
-0.6 -0.4
VACUUM 30 3 4 70
1.863 -25 -0.8 -0.2 -5 0.750 20 2 5 80
bar 0.750 1.780 dia.
-1.0 0 1 6
100XkPa
10 kg /cm 2 90
in 0 PSIG 7
-30
Hg 0
0 100
0.833 0.132 0.843 0.125
1.000 1.000
0.385 0.375
0.665 0.656
Gauge measures Gauge measures pneumatic #6-32 thd.
#6-32 thd.
pneumatic vacuum 1/8-27 NPT system pressure. Mounting 1.156 1/8" NPT
1.156 1.630 dia. #10-32
pressure. Mounting bracket #10-32 female thd. bracket included. female thd.
1.600
included.
Input Pressure: Scale reading from 0 to 100 psig and 0 to 6.9 bar
Range: Scale reading from 0 to 30 in.Hg. and 0 to -1 bar
Construction: Nickel-plated steel case. Plastic face. Dial shows two
Construction: Nickel-plated steel case. Plastic face. Dial shows two ranges; psig in black, bars in red. Built-in pressure snubber.
ranges; Hg in black, bars in red. Built-in pressure snubber.
Ports: Connection located at rear is double threaded
Ports: Connection located at rear is double threaded O.D. - male thread 1/8” NPT
O.D. - male thread 1/8” NPT I.D. - tapped for #10-32 fitting
I.D. - tapped for #10-32 fitting
Mounting: With zinc plated steel bracket supplied
Mounting: Stud mount using 1/8” NPT center stud or panel mount using
the zinc plated steel bracket supplied.
Part No. Description
PG-100 Pressure Gauge
Part No. Description
VG-30 Vacuum Gauge
355 Clippard Instrument Laboratory, Inc. 877-245-6247 www.clippard.com
