P. 315

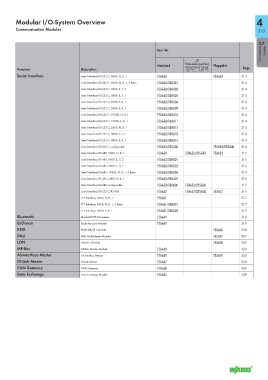

Modular I/O-System Overview 4

Communication Modules
313

4.7
Communication
Item No. Modules
/T
Standard Extended operating Pluggable
temperature range:
Function Description -20 °C ... +60 °C Page
Serial Interface Serial Interface RS-232 C, 9600, N, 8, 1 750-650 753-650 314
750-650/000-001
Serial Interface RS-232 C, 9600, N, 8, 1, 5 bytes 314
Serial Interface RS-232 C, 9600, E, 7, 2 750-650/000-002 314
Serial Interface RS-232 C, 4800, E, 7, 1 750-650/000-004 314
Serial Interface RS-232 C, 9600, E, 8, 1 750-650/000-006 314
Serial Interface RS-232 C, 2400, E, 8, 1 750-650/000-009 314
750-650/000-010
Serial Interface RS-232 C, 19200, N, 8, 1 314
750-650/000-011
Serial Interface RS-232 C, 19200, E, 8, 1 314
Serial Interface RS-232 C, 2400, N, 8, 1 750-650/000-012 314
Serial Interface RS-232 C, 4800, E, 7, 2 750-650/000-013 314
Serial Interface RS-232 C, 4800, E, 8, 1 750-650/000-015 314
Serial Interface RS-232 C, conﬁgurable 750-650/003-000 753-650/003-000 314
750-653 750-653/025-018 753-653
Serial Interface RS-485, 9600, N, 8, 1 315
750-653/000-001
Serial Interface RS-485, 9600, E, 7, 2 315
Serial Interface RS-485, 9600, E, 8, 1 750-653/000-002 315
Serial Interface RS-485, 19200, N, 8, 1, 5 bytes 750-653/000-006 315
Serial Interface RS-485, 2400, N, 8, 1 750-653/000-007 315
Serial Interface RS-485, conﬁgurable 750-653/003-000 750-653/025-000 315
750-652 750-652/025-000 753-652
Serial Interface RS-232 C/RS-485 316
750-651
TTY Interface, 9600, N, 8, 1 317
TTY Interface, 9600, N, 8, 1, 5 bytes 750-651/000-001 317
TTY Interface, 9600, E, 8, 1 750-651/000-002 317
Bluetooth Bluetooth RF Transceiver 750-644 318
®
EnOcean Radio Receiver Module 750-642 319
KNX KNX/EIB/TP1 Module 753-646 320
DALI DALI Multi-Master Module 753-647 321
LON LON FTT Module 753-648 322
MP-Bus MP-Bus Master Module 750-643 323
AS-Interface Master AS-Interface Master 750-655 753-655 324
IO-Link Master IO-Link Master 750-657 326
CAN Gateway CAN Gateway 750-658 328
Data Exchange Data Exchange Module 750-654 329
