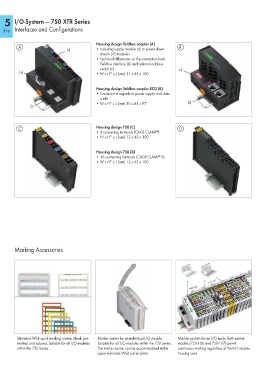

5 I/O-System — 750 XTR Series
396 Interfaces and Configurations

Housing design fieldbus coupler (A)
A B
a) • Including supply module (a) to power down-
stream I/O modules
• Technical differences on the connection level.
Fieldbus interface (b) and optional address
switch (c) c)
b) • W x H* x L (mm) 51 x 65 x 100

Housing design fieldbus coupler ECO (B)
• Constraint in regards to power supply and data
width
• W x H* x L (mm) 50 x 65 x 97 b)
c)

C Housing design 750 (C) D
®
• 8 connecting terminals (CAGE CLAMP )
• W x H* x L (mm) 12 x 62 x 100

Housing design 750 (D)
®
• 16 connecting terminals (CAGE CLAMP S)
• W x H* x L (mm) 12 x 62 x 100

Marking Accessories

Miniature WSB quick marking system, blank, pre- Marker carrier for an individual I/O module. Marker carriers for an I/O node. Both carrier
marked and colored. Suitable for all I/O modules Suitable for all I/O modules within the 750 Series. models (750-106 and 750-107) permit
within the 750 Series. The marker carrier can be accommodated in the continuous marking regardless of the I/O module
upper miniature WSB carrier plate. housing used.
