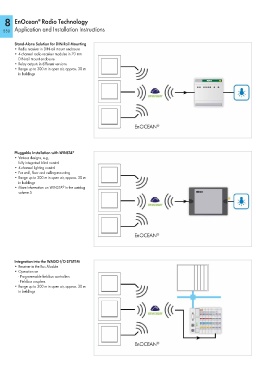

8 EnOcean Radio Technology
®
550 Application and Installation Instructions

Stand-Alone Solution for DIN-Rail Mounting
• Radio receiver in DIN-rail mount enclosure
• 4-channel radio receiver modules in 70 mm
DIN-rail mount enclosure
• Relay outputs in different versions
• Range up to 300 m in open air, approx. 30 m
in buildings

Pluggable Installation with WINSTA ®
• Various designs, e.g.,
fully integrated blind control
• 4-channel lighting control
• For wall, floor and ceiling mounting
• Range up to 300 m in open air, approx. 30 m
in buildings
®
• More information on WINSTA in the catalog
volume 5

Integration into the WAGO-I/O-SYSTEM
• Receiver in the Bus Module
• Operation on
- Programmable fieldbus controllers
- Fieldbus couplers
• Range up to 300 m in open air, approx. 30 m
in buildings
