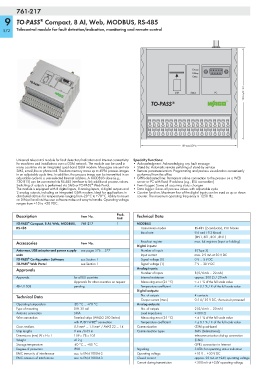

761-217

9 TO-PASS Compact, 8 AI, Web, MODBUS, RS-485
®
572 Telecontrol module for fault detection/indication, monitoring and remote control

Com
Busy
Run

SIM Status PC <_____________________________________ 105 mm/4.12 in _____________________________________>

TO-PASS ®

<________________________________________ 109 mm/4.29 in ________________________________________>

Universal telecontrol module for fault detection/indication and Internet connectivity Specialty functions:
for machines and installations over a GSM network. The module can be used in • Acknowledgment: Acknowledging any fault message
many countries via an integrated quad-band GSM modem. Messages are sent via • Stand-by: Automatic remote switching of stand-by service
SMS, e-mail, fax or phone call. The data memory stores up to 4096 process images • Remote parameterization: Programming and process visualization conveniently
in an adjustable cycle time. In addition, the process image can be transmitted in an performed from the office
adjustable cycle to a user-selected Internet address. A MODBUS slave (e.g., • GPRS-dedicated line: Permanent online connection to the process on a WEB
750-815) can be connected via RS-485 interface to link additional process values. server or PC with fixed IP address (e.g., DSL connection)
®
Switching of outputs is performed via SMS or TO-PASS Web Portal. • Event logger: Saves all occurring status changes
The module is equipped with 8 digital inputs, 8 analog inputs, 4 digital outputs and • Data logger: Saves all process values with adjustable cycle
2 analog outputs, including an integrated GSM modem. Ideal for applications in • Counter function: Maximum four of the digital inputs can be used as up or down
distributed stations for temperatures ranging from -20°C to +70°C. Ability to mount counter. The maximum operating frequency is 1250 Hz.
on DIN-rail and intuitive user software make unit easy to handle. Operating voltage
ranges from +10 to +30 VDC.
Description Item No. Pack. Technical Data
Unit
®
TO-PASS Compact, 8 AI, Web, MODBUS, 761-217 1 MODBUS
RS-485 Transmission modes RS-485 (2-conductor), RTU Master
Baud rate 9.6 and 19.2 kbaud
(8N1, 8E1, 8O1, 8N1)
Accessories Item No. Read-out register max. 64 registers (input or holding)
Digital inputs:
Antennas, USB adapter and power supply see pages 576 ... 577 Number of inputs 8 (Type 3)
units Input current max. 2.9 mA at 30 V DC
TO-PASS Configuration Software see Section 1 Signal voltage (0) 0 V ... 5 V DC
®
®
TO-PASS Web Portal see Section 1 Signal voltage (1) 7 V ... 30 V DC
Approvals Analog inputs:
Number of inputs 8 (0/4 mA ... 20 mA)
Approvals for all EU countries Internal resistance approx. 200 Ω / 20 mA
Approvals for other countries on request Measuring error (25 °C) < ± 1 % of the full scale value
r UL 508 pending Temperature coefficient < ± 0.1 % / K of the full scale value
Digital outputs:
Technical Data No. of outputs 4 contacts
Output current (max.) 0.5 A/ 30 V DC, short-circuit protected
Operating temperature -20 °C ... +70 °C Analog outputs:
Type of mounting DIN 35 rail No. of outputs 2 (0/4 mA ... 20 mA)
Antenna connection SMA Load impedance ≤ 600 Ω
Wire connection Terminal strips (WAGO 250 Series) Measuring error (25 °C) < ± 1 % of the full scale value
®
with PUSH WIRE connection Temperature coefficient < ± 0.1 % / K of the full scale value
Cross sections 0.5 mm² ... 1.5 mm² / AWG 22 ... 14 Communication GSM quad-band
Strip lengths 9 mm /0.35 in Communication types SMS (bidirectional),
Dimensions (mm) W x H x L 109 x 78 x 105 telecommunication dial-up connection
Weight 412 g (CSD)
Storage temperature -40 °C ... +85 °C GPRS connection to Internet
Degree of protection IP20 Signaling 3 LEDs for operating status indication
EMC immunity of interference acc. to EN 61000-6-2 Operating voltage +10 V ... +30 V DC
EMC emission of interference acc. to EN 61000-6-3 Closed current approx. 20 mA at +24V operating voltage
Current during transmission < 500 mA at +24V operating voltage
