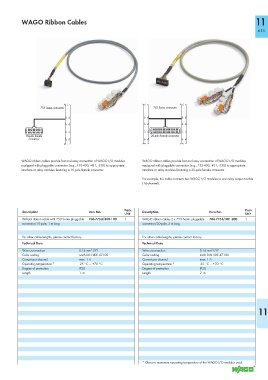

WAGO Ribbon Cables 11

615

753 Series connector 753 Series connector

10-pole female 20-pole female connector
connector

WAGO ribbon cables provide fast and easy connection of WAGO I/O modules WAGO ribbon cables provide fast and easy connection of WAGO I/O modules
equipped with pluggable connectors (e.g., 753-430, -431, -530) to appropriate equipped with pluggable connectors (e.g., 753-430, -431, -530) to appropriate
interface or relay modules featuring a 10-pole female connector. interface or relay modules featuring a 20-pole female connector
For example, this cable connects two WAGO I/O modules to one relay output module
(16-channel).

Pack. Pack.
Description Item No. Description Item No.
Unit Unit
WAGO ribbon cable with 753 Series pluggable 706-7753/300-100 1 WAGO ribbon cable, 2 x 753 Series pluggable 706-7753/301-200 1
connector/10-pole, 1 m long connector/20-pole, 2 m long

For other cable lengths, please contact factory For other cable lengths, please contact factory
Technical Data Technical Data
2
2
Wire cross-section 0,14 mm LiYY Wire cross-section 0,14 mm LiYY
Color coding nach DIN VDE 47100 Color coding nach DIN VDE 47100
Current per channel max. 1 A Current per channel max. 1 A
Operating temperature * -25 °C ... +70 °C Operating temperature * -25 °C ... +70 °C
Degree of protection IP20 Degree of protection IP20
Length 1 m Length 2 m

11

* Observe maximum operating temperature of the WAGO I/O modules used.
