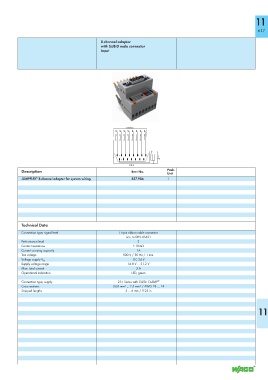

8-channel adapter
with SUB-D male connector
Input
Interface
1 +―
9
SUB-D
Description Item No. Pack.
Unit
®
JUMPFLEX 8-channel adapter for system wiring 857-986 1
Technical Data
Connection type, signal level 15-pin ribbon cable connector
acc. to DIN 41651
Performance level 2
Contact resistance ≤ 10mΩ
Current carrying capacity 1A
Test voltage 500 V / 50 Hz / 1 min.
DC 24 V
Voltage supply V N
Supply voltage range 16.8 V ... 31.2 V
Max. total current 3 A
Operational indication LED, green
Connection type, supply 231 Series with CAGE CLAMP ®
Cross sections 0.08 mm² ... 2.5 mm² / AWG 28 ... 14
Stripped lengths 5 ... 6 mm / 0.22 in
