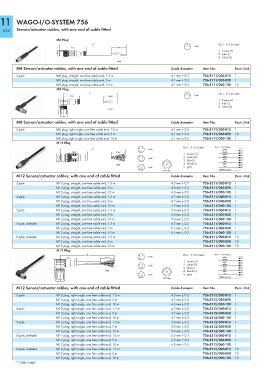

Page 624 - Wago_AutomationTechnology_Volume3_2015_US.pdf

11 WAGO-I/O-SYSTEM 756

622 Sensor/actuator cables, with one end of cable fitted

M8 Plug
L* Pin 1 - 4: 0.25 mm²
3 pole
41,3 20±2
1 brown (+)
ø 9,6 3 blue (-)
4 black (S)
(mm)
M8 Sensor/actuator cables, with one end of cable fitted Cable diameter Item No. Pack. Unit
3-pole M8 plug, straight, one free cable end, 1.5 m 4.1 mm ± 0.2 756-5111/030-015 1
M8 plug, straight, one free cable end, 5 m 4.1 mm ± 0.2 756-5111/030-050 1
M8 plug, straight, one free cable end, 10 m 4.1 mm ± 0.2 756-5111/030-100 10
M8 Plug
L* Pin 1 - 4: 0.25 mm²
23,5 20±2 3 pole
1 brown (+)
3 blue (-)
23,2 4 black (S)
(mm)
ø 9,6
M8 Sensor/actuator cables, with one end of cable fitted Cable diameter Item No. Pack. Unit

3-pole M8 plug, right angle, one free cable end, 1.5 m 4.1 mm ± 0.2 756-5112/030-015 1
M8 plug, right angle, one free cable end, 5 m 4.1 mm ± 0.2 756-5112/030-050 10
M8 plug, right angle, one free cable end, 10 m 4.1 mm ± 0.2 756-5112/030-100 1
M12 Plug
Pin 1 - 5: 0.34 mm² Pin 1 ... 8: 0.25 mm²
L*) 3 pole white
52,3 35±2 brown 1
1 brown (+) green 2
ø15 M12x1 4 pole 2 white (Ö) yellow 3 4
gray
6 5 4 3 blue (-) pink 5 6
(mm) 7 8 3 4 black (S) blue 7
5 pole 1 2 5 gray red 8
Shield (screen)
M12 plug
M12 Sensor/actuator cables, with one end of cable fitted Cable diameter Item No. Pack. Unit
3-pole M12 plug, straight, one free cable end, 1.5 m 4.3 mm ± 0.2 756-5311/030-015 1
M12 plug, straight, one free cable end, 5 m 4.3 mm ± 0.2 756-5311/030-050 1
M12 plug, straight, one free cable end, 10 m 4.3 mm ± 0.2 756-5311/030-100 1
4-pole M12 plug, straight, one free cable end, 1.5 m 4.7 mm ± 0.2 756-5311/040-015 1
M12 plug, straight, one free cable end, 5 m 4.7 mm ± 0.2 756-5311/040-050 1
M12 plug, straight, one free cable end, 10 m 4.7 mm ± 0.2 756-5311/040-100 1
5-pole M12 plug, straight, one free cable end, 1.5 m 5.0 mm ± 0.2 756-5311/050-015 1
M12 plug, straight, one free cable end, 5 m 5.0 mm ± 0.2 756-5311/050-050 1
M12 plug, straight, one free cable end, 10 m 5.0 mm ± 0.2 756-5311/050-100 1
5-pole, shielded M12 plug, straight, one free cable end, 1.5 m 6.5 mm ± 0.2 756-5311/060-015 1
M12 plug, straight, one free cable end, 5 m 6.5 mm ± 0.2 756-5311/060-050 1
M12 plug, straight, one free cable end, 10 m 6.5 mm ± 0.2 756-5311/060-100 1
8-pole, shielded M12 plug, straight, one free cable end, 1.5 m 756-5311/090-015 10
M12 plug, straight, one free cable end, 5 m 756-5311/090-050 10
M12 plug, straight, one free cable end, 10 m 756-5311/090-100 10
M12 Plug
L*) Pin 1 - 5: 0.34 mm² Pin 1 ... 8: 0.25 mm²
3 pole white
37,5 35±2 1
brown
1 brown (+) green 2
2 white (Ö) yellow 3
4 pole gray 4
35,3 6 5 4 3 blue (-) pink 5
(mm) 4 black (S) blue 6
7 8 3 7
5 pole 1 2 5 gray red 8
Shield (screen)
M12 plug
M12x1
ø15
M12 Sensor/actuator cables, with one end of cable fitted Cable diameter Item No. Pack. Unit
3-pole M12 plug, right angle, one free cable end, 1.5 m 4.3 mm ± 0.2 756-5312/030-015 1
M12 plug, right angle, one free cable end, 5 m 4.3 mm ± 0.2 756-5312/030-050 1
M12 plug, right angle, one free cable end, 10 m 4.3 mm ± 0.2 756-5312/030-100 1
4-pole M12 plug, right angle, one free cable end, 1.5 m 4.7 mm ± 0.2 756-5312/040-015 1
M12 plug, right angle, one free cable end, 5 m 4.7 mm ± 0.2 756-5312/040-050 1
M12 plug, right angle, one free cable end, 10 m 4.7 mm ± 0.2 756-5312/040-100 1
5-pole M12 plug, right angle, one free cable end, 1.5 m 5.0 mm ± 0.2 756-5312/050-015 1
M12 plug, right angle, one free cable end, 5 m 5.0 mm ± 0.2 756-5312/050-050 1
M12 plug, right angle, one free cable end, 10 m 5.0 mm ± 0.2 756-5312/050-100 1
5-pole, shielded M12 plug, right angle, one free cable end, 1.5 m 6.5 mm ± 0.2 756-5312/060-015 1
M12 plug, right angle, one free cable end, 5 m 6.5 mm ± 0.2 756-5312/060-050 1
M12 plug, right angle, one free cable end, 10 m 6.5 mm ± 0.2 756-5312/060-100 1
8-pole, shielded M12 plug, right angle, one free cable end, 1.5 m 756-5312/090-015 10
M12 plug, right angle, one free cable end, 5 m 756-5312/090-050 10
M12 plug, right angle, one free cable end, 10 m 756-5312/090-100 10
* Cable length
