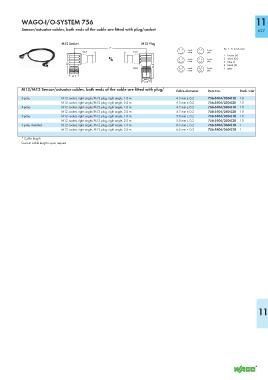

Page 629 - Wago_AutomationTechnology_Volume3_2015_US.pdf

WAGO-I/O-SYSTEM 756 11

Sensor/actuator cables, both ends of the cable are fitted with plug/socket 627

M12 Socket M12 Plug
L* Pin 1 - 5: 0.34 mm²
3-pole 3-pole
33,5 33,5 socket plug
1 brown (+)
4-pole 4-pole 2 white (Ö)
socket plug 3 blue (-)
32 4 black (S)
(mm) 38,5 5-pole 5-pole 5 gray
socket plug
ø15
M12x1
ø15
M12/M12 Sensor/actuator cables, both ends of the cable are fitted with plug/ Cable diameter Item No. Pack. Unit
3-pole, M12 socket, right angle/M12 plug, right angle, 1.0 m 4.3 mm ± 0.2 756-5404/030-010 10
M12 socket, right angle/M12 plug, right angle, 2.0 m 4.3 mm ± 0.2 756-5404/030-020 10
4-pole, M12 socket, right angle/M12 plug, right angle, 1.0 m 4.7 mm ± 0.2 756-5404/040-010 10
M12 socket, right angle/M12 plug, right angle, 2.0 m 4.7 mm ± 0.2 756-5404/040-020 10
5-pole, M12 socket, right angle/M12 plug, right angle, 1.0 m 5.0 mm ± 0.2 756-5404/050-010 10
M12 socket, right angle/M12 plug, right angle, 2.0 m 5.0 mm ± 0.2 756-5404/050-020 10
5-pole, shielded M12 socket, right angle, M12 plug, right angle, 1.0 m 6.5 mm ± 0.2 756-5404/060-010 1
M12 socket, right angle, M12 plug, right angle, 2.0 m 6.5 mm ± 0.2 756-5404/060-020 1
* Cable length
Custom cable lengths upon request
